Clamp Block For Ball Head

PART No 22.1181
$6.33 each
PART No: 22.1181$6.33 each
  • For rapidly securing & removing items.
  • Rapid docking can make tool or fixture change out fast & easy
  • Adjust tension using M5 side screws
  • 15 degree swivel allows for self alignment
  • Also accepts ball stud from our plastic leveling feet.
PART No: 22.1181 Category:

Technical Data / Items Supplied

  • Polyamide Plastic, Gray
  • Includes two, M6x20 screws & nuts for attaching to 45 series profiles
  • Includes two, M5x25 tensioning screws & hex nuts
  • For use with 21.2506, M8 Ball Head (Sold Separately)
  • Swivel area 15 deg.
  • Load Capacity 150 kg in vertical orientation
  • Holding force adjustable 0 – 50N (11 lbs)
  • Weight – .054 kg/ea

Applications

Assembly Info

  • Fasten to t-slots with supplied M6 Hardware
  • Adjust tension using M5 screws on sides

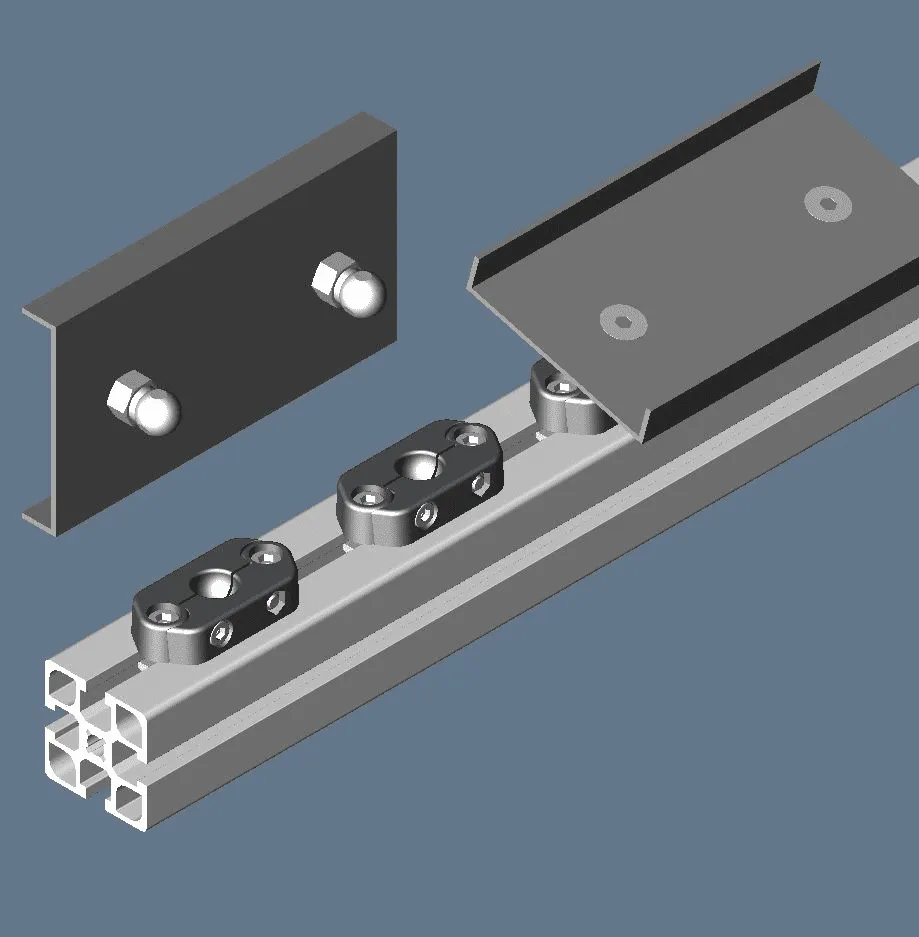

22.1181-CLAMP-BLOCK-FOR-BALL-HEAD_R

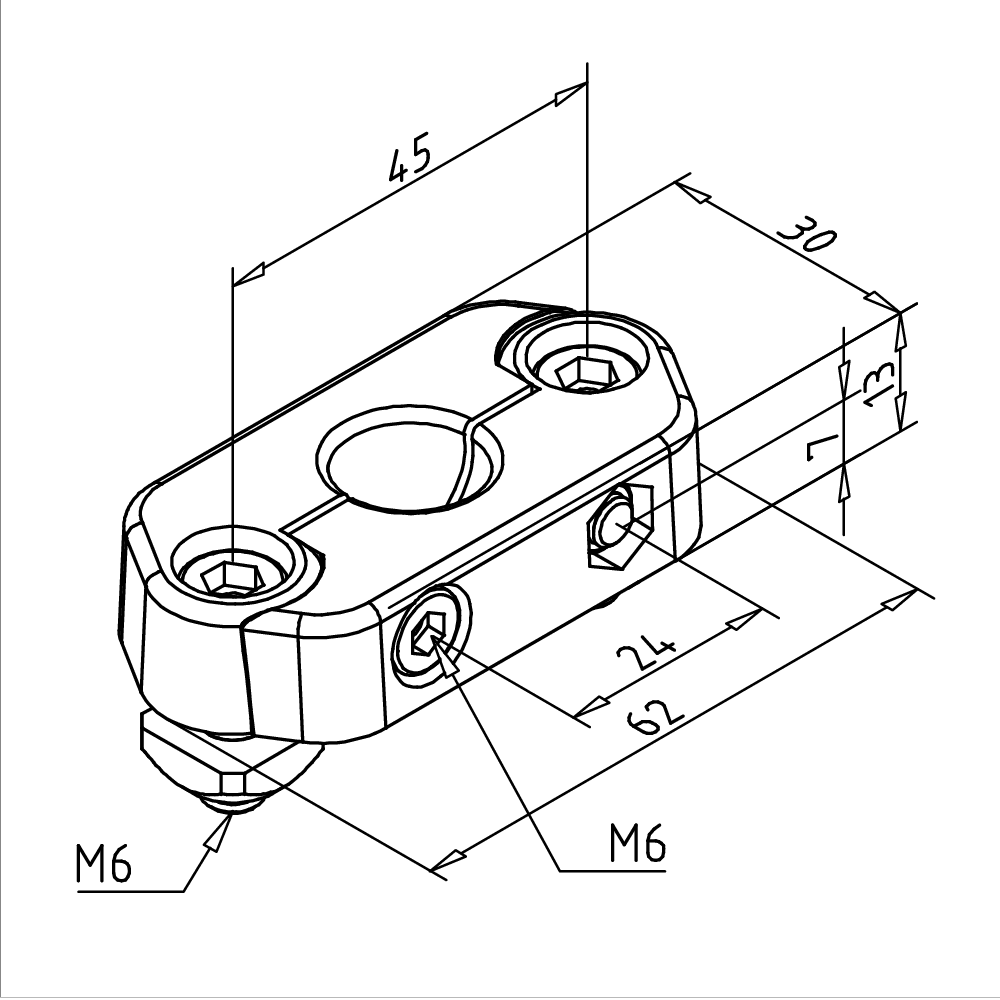

22.1181-CLAMP-BLOCK-FOR-BALL-HEAD_L

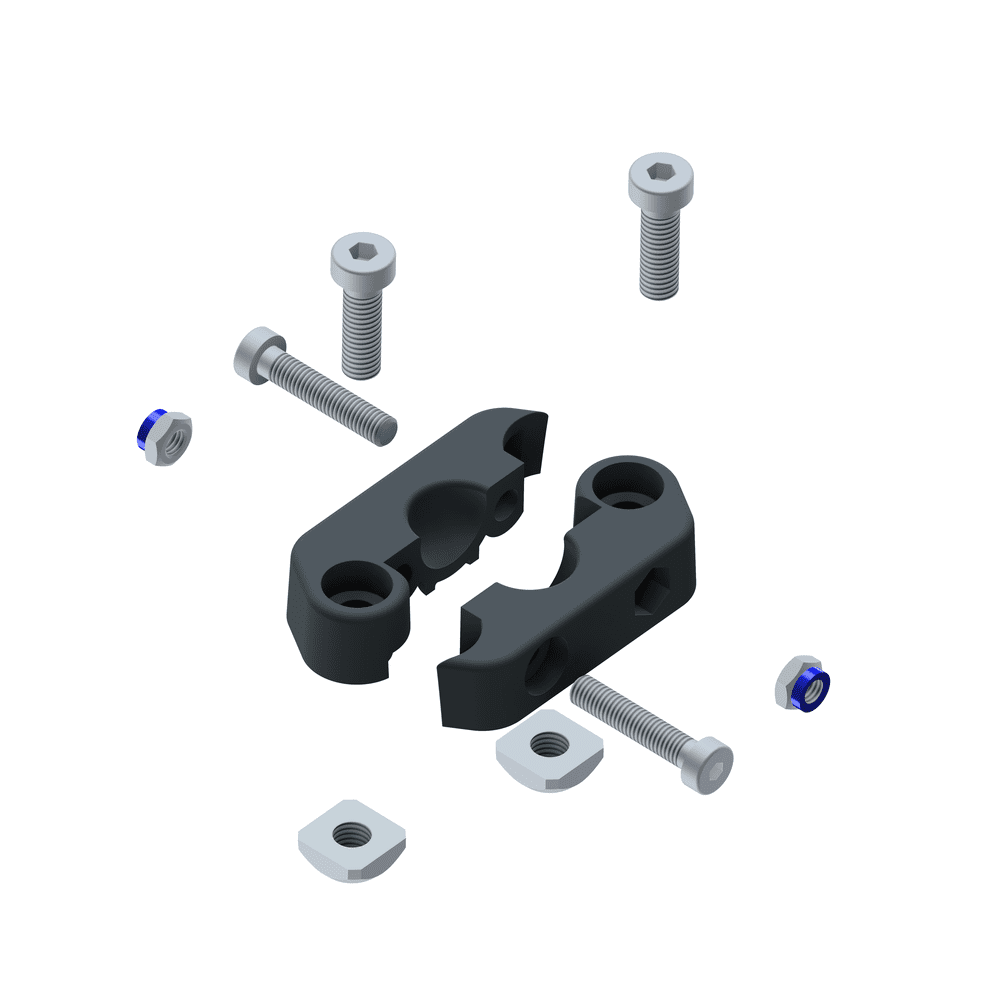

22.1181-CLAMP-BLOCK-FOR-BALL-HEAD_M

Downloads

3D Step
