Clamping Claw

PART No 21.1027
$14.52 each
PART No: 21.1027$14.52 each
  • Face to face profile connection at various angles
  • Pressure fit locks profiles in place
  • Use two clamping claws for high moment load applications
PART No: 21.1027 Category:

Technical Data / Items Supplied

  • Aluminum block, anodized
  • 1 M8x30 socket head cap screw
  • 1 M8 square nut with position fixing
  • Weight – .609 kg

Applications

Assembly Info

  • No processing required
  • Insert square nut into t-slot of profile
  • Engage claw in slot of second profile
  • Recommended locking torque 20 Nm
21.1027-Clamping-Claw-Photo
21.1027_Clamping_Claw_L
21.1027_Clamping_Claw_M
21.1027_Clamping_Claw_R

Downloads

3D Step
Solidworks
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

21.1403-Guard-Unit-With-Adjustable-Fixing-Angle-Photo

Guard Unit Adj. Fixing Angle

Part No 21.1403
21.0008_Guard_Unit_Fixing_Angle_GD_K_MP

Guard Unit Fxing Angle GD

Part No 21.0008
21.0954_Adaptor_G32-G32_MP

Adaptor G32/G32

Part No 21.0954

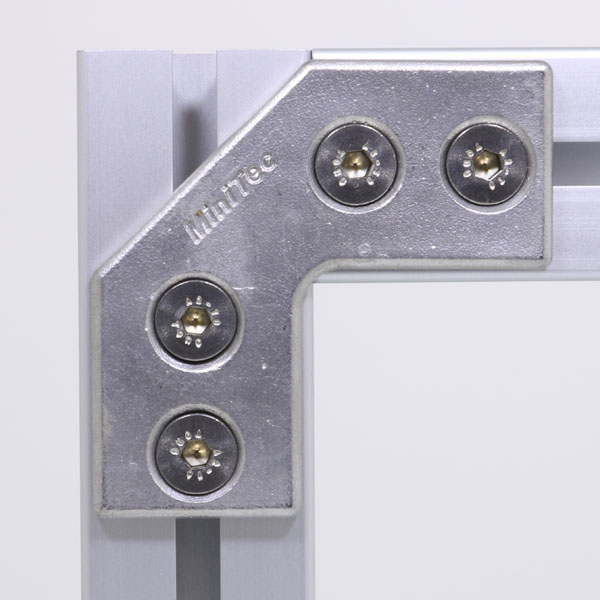

21.0018-Angle-Sheet-VA-Photo
