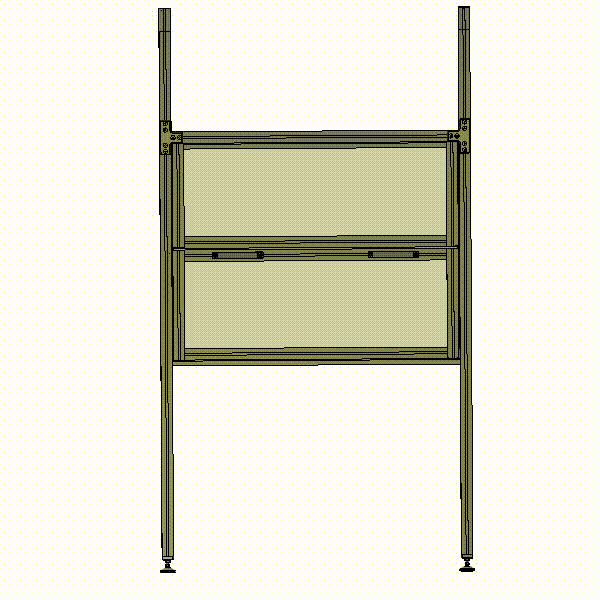

Double Frameless Doors

PART No SP042012-1
PART No: SP042012-1 each
  • Economical enclosure & machine guarding access
  • Both doors can be easily removed for machine maintenance
  • Not Recommended for aluminum, glass or alumalite panels
  • Click here for info on how to cut panels: SP042012 1 GUIDE PROFILE 2



PART No: SP042012-1 Category:

Technical Data / Items Supplied

  • Doors clear polycarbonate(Lexan®) or specify.
  • Click here for MiniTec’s in stock panels
  • Double sliding door using guide profile 2
  • Doors can be lift removable
  • Use pvc bar in the bottom track for lift removable doors
  • Guide profile most commonly used with 6mm (1/4″) panels
  • Guide profile 2 on the vertical members is optional
  • For doors over 42″ tall add rigidity to the panel using the handle profile

Assembly Info

  • Assemble aluminum frame complete
  • Guide profile snaps easily into slots
  • Insert pvc bar into bottom tracks for lift removable doors
