Fixing Kit LRE

PART No 28.0022
$25.30 each
PART No: 28.0022$25.30 each
  • Fastening of Ball Bearing LR12 to t-slots
  • Use across the rail from concentric attachment Fixing Kit LRK
PART No: 28.0022 Category:

Technical Data / Items Supplied

  • Qty 1, t-slot bar 90, steel zinc plated
  • Qty 1 eccentric bushing, steel, black finish
  • Precision groundM8x36 socket head cap screw, steel, black finish
  • Qty 1 steel washer, black finish
  • Stainless version part # 28.0022/1
  • Weight – .100 kg

Applications

Assembly Info

  • Slide t-slot bar in from profile end
  • Tighten M8 set screw
  • Slide M8 shoulder bolt thru eccentric bushing, bearing and washer, then tighten using 5mm hex key
  • Recommended locking torque 25 Nm

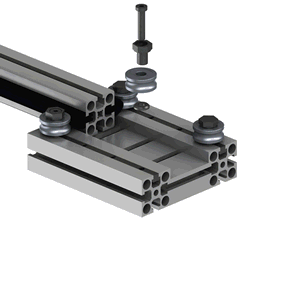

28.0022_Fixing_Kit_LRE_MP
28.0022_Fixing_Kit_LRE_L
28.0022_Fixing_Kit_LRE_M
28.0022-FixingKitLRE_300
