Flush Pull 160

PART No 21.9308
$24.20 each
PART No: 21.9308$24.20 each
PART No: 21.9308 Category:

Technical Data / Items Supplied

  • Aluminum Handle with zinc die cast end caps
  • M4 mounting screws sold separately
  • Weight – .075kg

Applications

Assembly Info

  • Machine pocket 172mm x 36.5mm x 13.2mm Deep in profile or panel with a Ø1/4″(6mm) end mill so pocket corners have a 1/8″ radius.
  • Drill two 5mm Dia. clearance holes, centered on the pocket in both directions, on 160mm centers for rear mounting with M4 x .7 screws

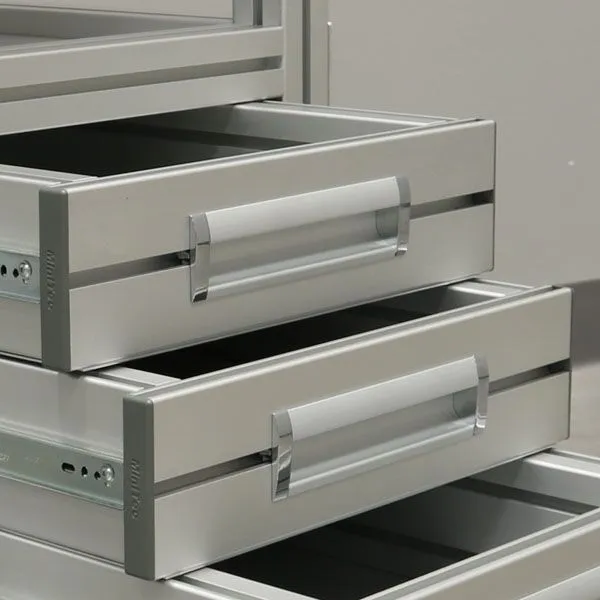

21.9308-Flush-Pull-Photo
21.9308_FLUSH_PULL_160_AL_L
21.9308_FLUSH_PULL_160_AL_MP

Downloads

3D Step
Inventor
