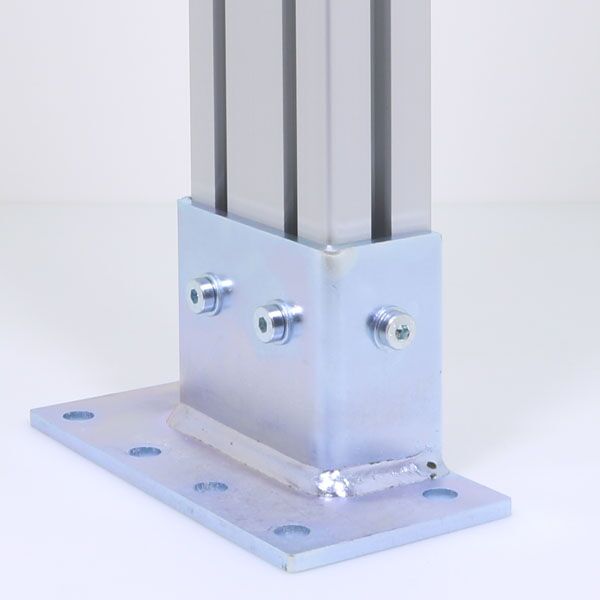

Foot 90 S

PART No 21.1707
$70.40 each
PART No: 21.1707$70.40 each
  • Use with any profile with a 90mm face
  • Mounting to the floor or wall of large machine guards and barrier enclosures
PART No: 21.1707 Category:

Technical Data / Items Supplied

  • Steel foot, zinc plated
  • 4 M8x20 socket head cap screws
  • 4 M8 square nuts
  • 4 M8 round washers
  • Plastic Cover, Part # 22.1025/1 sold separately
  • Floor anchor 12, Part # 21.1115 sold separately
  • Weight – 1.438 kg

Applications

Assembly Info

  • Fasten to the profile with supplied M8 hardware
  • Fasten to the floor with lag bolts
21.1707-Foot-90-S-Photo
21.1707_FOOT_90_S_L
21.1707_FOOT_90S_M
21.1707_FOOT_90S_R

Downloads

3D Step
Solidworks
Inventor
