Glide Roll Element Parallel

PART No 21.1714
$54.00 each
PART No: 21.1714$54.00 each
  • Guide for vertical and horizontal sliding doors
  • Both slots are parallel to each other for construction of flush sliding doors
  • Sliding drawers
PART No: 21.1714 Category:

Technical Data / Items Supplied

  • UHMW, black
  • Qty 4 ball bearings (installed)
  • M5 set screw for fixing in T-sot
  • Max. Load – 300 N
  • Weight – .060 kg

Applications

Assembly Info

  • Slide set screw side of Glide Roll Element into t-slot
  • Tighten 5mm set screw to fix in position

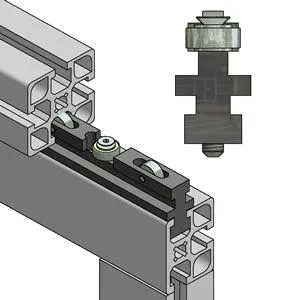

21.1714_Glide_Roll_Element_Parallel_MP
21.1714_Glide_Roll_Element_Parallel_L
21.1714_Glide_Roll_Element_Parallel_M
21.1714_Glide_Roll_Element_Parallel_R

Downloads

3D Step
Solidworks
Inventor
