Handle 30 Black Non-Locking

PART N^o 21.9307

$35.20 each

PART N^o: 21.9307$35.20 each

Quarter turn latch for profiles 30mm thick
Machine guard doors where a keyed lock or tool are not required

PART No: 21.9307 Category: 30 Series Parts

Technical Data / Items Supplied

Handle Black Plastic, cylinder zinc plated steel
cam sold separately
Available with lock on request
Weight – .195 kg

Applications

Assembly Info

Bore Ø22mm Dia. thru middle of profileor machine square or octagal notch as shown above for additional rotation protection
Select cam with desired offset (order separately)
Tighten hex nut from back side

21.9307_HANDLE_30_BLACK_NON-LOCKING_MP

21.9307_HANDLE_30_BLACK_NON-LOCKING_L

21.9307_HANDLE_30_BLACK_NON-LOCKING_M

21.9307_HANDLE_30_BLACK_NON-LOCKING_R

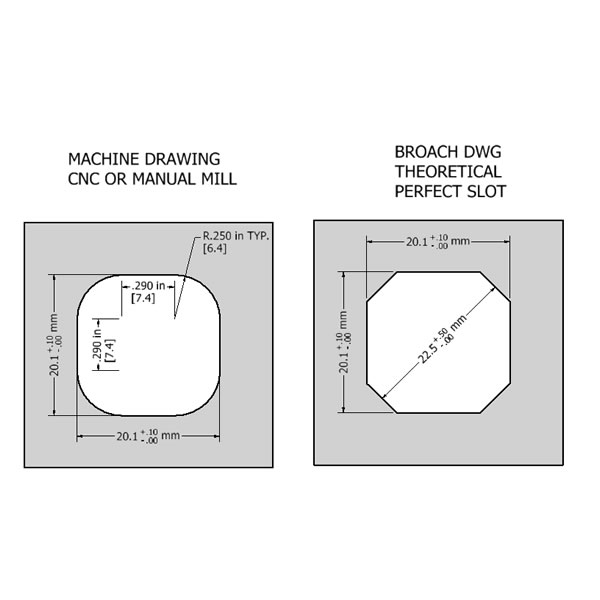

Handle Slot Machining Drawing
