Heavy Duty Hinge

PART No 21.2034
$157.30 each
PART No: 21.2034$157.30 each
  • Rotates through 180°
  • Heavy hinged doors
  • Swiveling & rotating lids
  • Hinge pivots freely on bronze bushings & does not lock
PART No: 21.2034 Category:

Technical Data / Items Supplied

  • Steel, Zinc Plated
  • Ø15mm Heavy Duty Steel Hinge Pin
  • Ø15mm Bronze Bushings
  • M8 Screws & Position Fixing Nuts for mounting to t-slots or profile end
  • Qty 4, M5x6 high head screws to prevent rotation
  • Weight – .679 kg
  • Load max. – 3500N (786 lbs)

Applications

Assembly Info

  • No processing required when mounting to t-slots
  • Drill & tap profile end M8x1.25, 1″ deep when mounting to profile end using M8 Form Tap, Part # 26.1082
  • To install remove one screw(shown in center pic) & move hinge so it is not rotated (as shown in upper right picture)

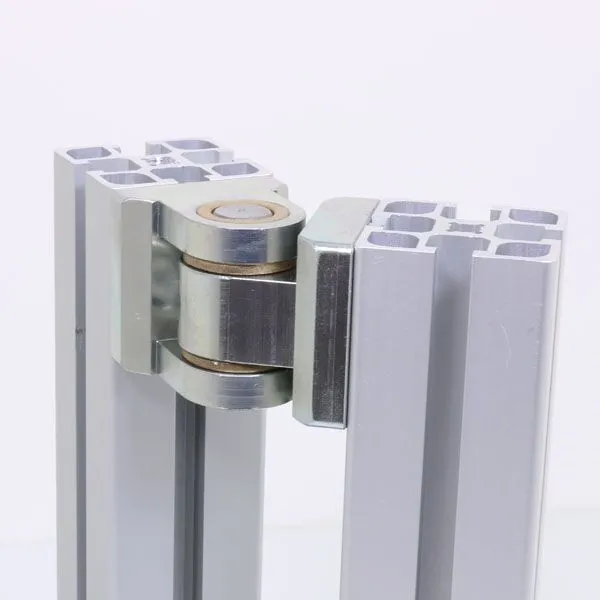

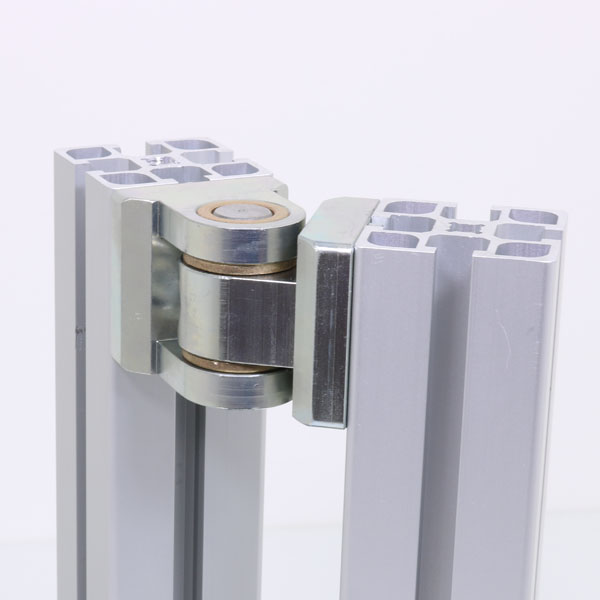

21.2034-Heavy-Duty-Hinge-Photo
21.2034_Heavy_Duty_Hinge_L
21.2034_Heavy_Duty_Hinge_M
21.2034_HEAVY_DUTY_HINGE_R

Downloads

3D Step
Solidworks
Inventor
