Labor Counterbore 7-20

PART No 25.1097
PART No: 25.1097 each
  • Bore for Bolt Fastener 20, Part # 21.1021
  • Most commonly used for subsequent fastening of profiles where end access to opposing profile is not available
  • Bore possible on top & bottom sides of profile for additional moment protection
  • Most commonly used on profiles 45mm and wider. For smaller profiles consider the Bolt Fastener 15, Part # 21.1024
PART No: 25.1097 Category:

Technical Data / Items Supplied

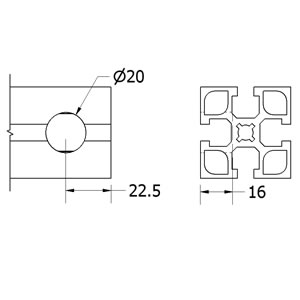

  • Ø20mm bore on t-slot center, 16mm deep
  • One side of profile

Applications

Assembly Info

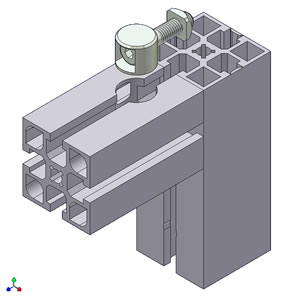

  • Insert bolt fastener into bore while sliding nut into t-slot
  • Where end access to profile is not available, press nut into t-slot first, then join with bolt fastener
  • Pre-tighten M8 screw using 5mm hex key with ball end, part # 26.1084
  • Perform final tightening with “L” hex key, part # 26.1085

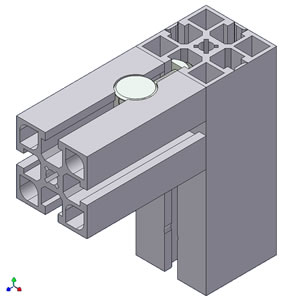

25.1097_20mm_bore_L
25.1097_20mm_Bore_M
25.1097_20mm_Bore_R

Downloads

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

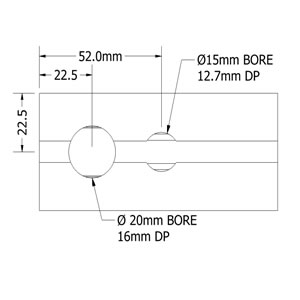

25.1097_9-20mm-BORE-FOR-BOLT-BUTT-FASTENERS-WITH-HEX-KEY-ACCESS-L
