Leveling Plate 45

PART No 21.1053
$29.70 each
PART No: 21.1053$29.70 each
  • Precise leveling of vertical profiles
  • Particularly suited for vertical sliding door posts
PART No: 21.1053 Category:

Technical Data / Items Supplied

  • Aluminum plate 15mm thick, anodized
  • Bolt fastener 20s for leveling plate, part # 21.1049 Sold separately (3 req.)
  • Leveling element part # 21.1054 sold separately (3 req.)
  • Weight – .150 kg

Applications

Assembly Info

  • Fasten leveling plate with floor anchors to floor or wall
  • Ø20 bore 6 plcs on 45×90 profile, 22.5mm from one end for bolt fastener 20 for leveling plate & leveling element
  • Insert 3 bolt fasteners for leveling plates in & pre tighten
  • Insert 3 leveling elements and adjust set screws to align profile

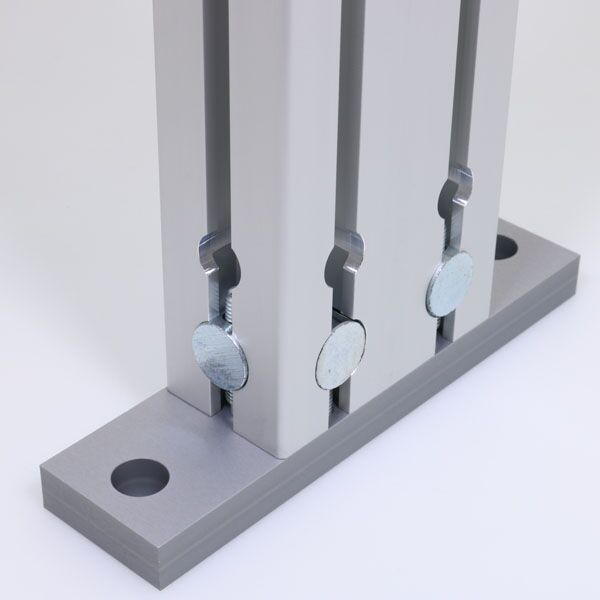

21.1053-Leveling-Plate-45-Photo
21.1053_Levelling_Plate_45_L
21.1053_Levelling_Plate_45_M
21.1053_Levelling_Plate_45_R

Downloads

3D Step
Solidworks
Inventor
