Leveling Plate 90 ST

PART No 21.0976
$319.00 each
PART No: 21.0976$319.00 each
  • Floor mounting for 90×90 profiles to concrete floor
  • Typically used on large structures where heavy duty leveling is needed
PART No: 21.0976 Category:

Technical Data / Items Supplied

  • Upper & lower plates zinc plated steel
  • Zinc plated leveling screws
  • Qty 4 M8 SHCS to attach 90×90 profile
  • Concrete lag bolts sold separately
  • Weight -5.146 kg

Applications

Assembly Info

  • Mount 90×90 profile to upper plate with included screws
  • Level plate with 30mm crescent wrench
  • Once level, tighten jamb nut & upper hex bolt

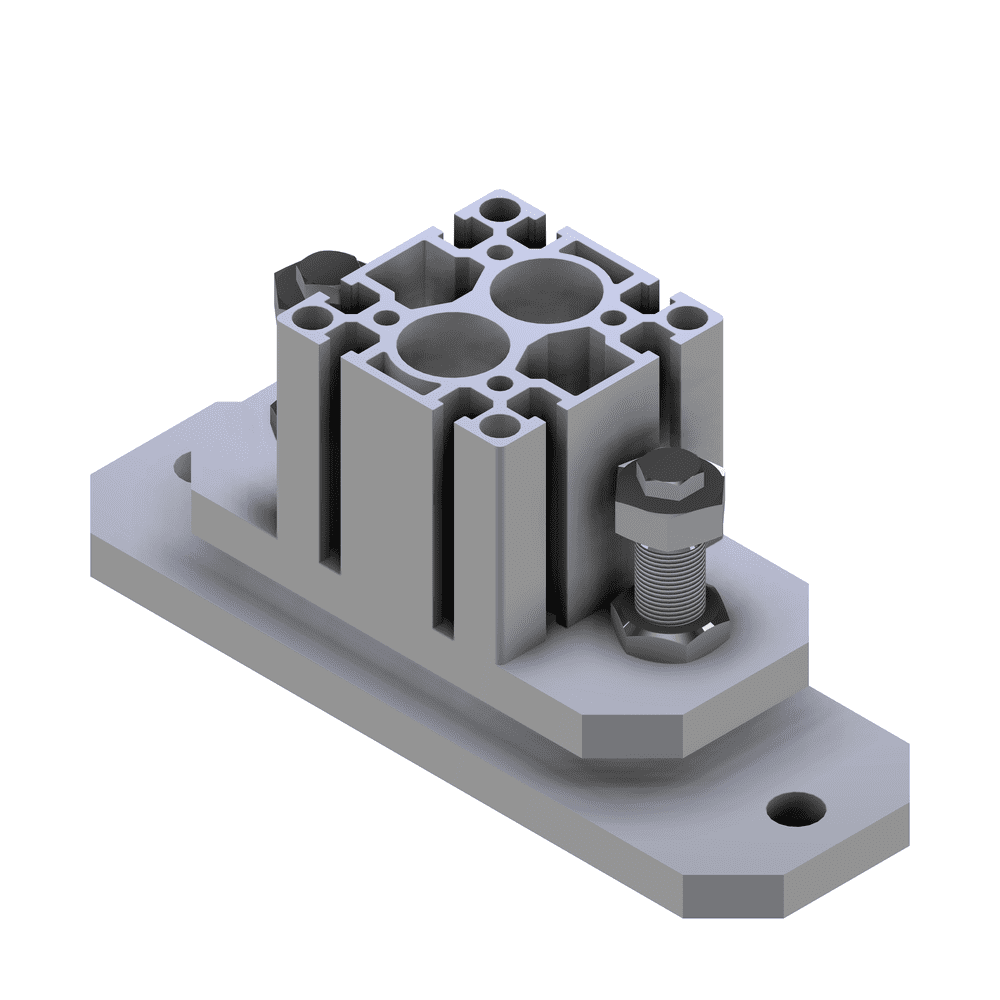

21.0976Levelling-plate-90-ST_M

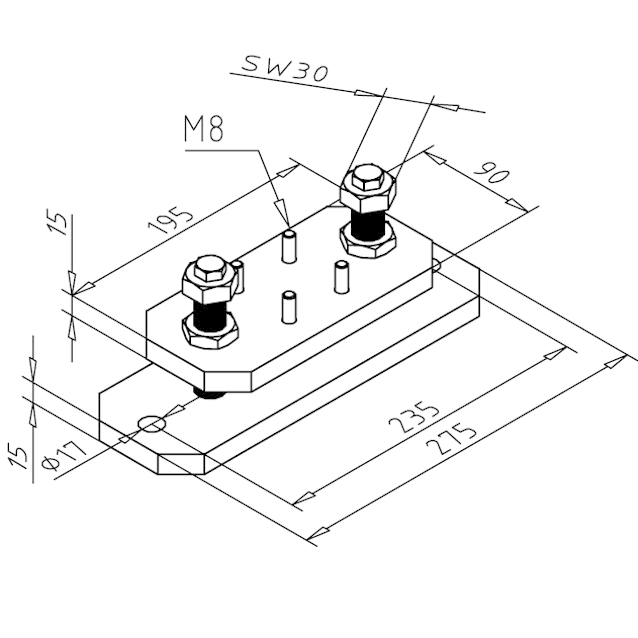

21.0976Levelling-plate-90-ST_L

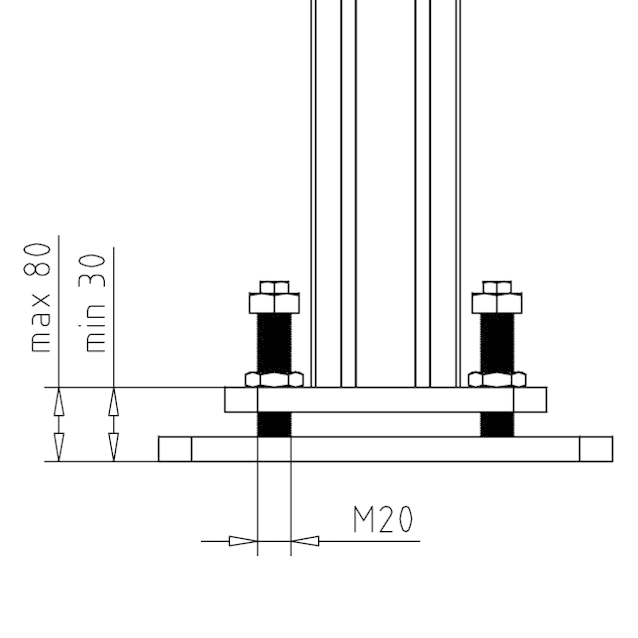

21.0976Levelling-plate-90-ST_R

Downloads

3D Step
Inventor
