Linear Positioner T45 LR16

PART N^o SP020613-1

PART N^o: SP020613-1 each

Linear scanning & positioning applications
Speeds up to 3M/S
Maximum Torque 70 Nm (51.6 Ft-Lb)
Pick & place

PART No: SP020613-1 Category: Linear System LR16

Technical Data / Items Supplied

See itemized list for included components
Motor & motor mounting sold seperately
Travel length to 5.6 meters(221″)
(longer travel possible by joining rails)
Click here for load capacity
Repeatability +/- .25mm(.01″)

Applications

Assembly Info

Unit Ships Fully Assembled

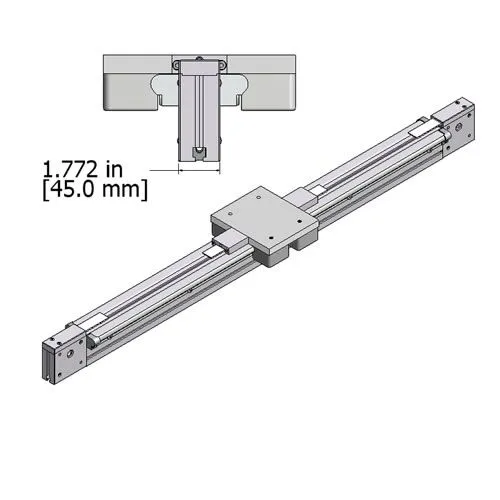

SP020613-1_MP

SP020613-1_L

SP020613-1_M
