M5x10 Cap Screw

PART N^o 21.1279

$0.22 each

PART N^o: 21.1279$0.22 each

Material – Zinc Plated Steel
Thread – M5x0.8
Length – 10mm
Hex Drive – 3mm
DIN – 7984

PART No: 21.1279 Categories Socket Head Cap Screws, Socket Head Cap Screws

Technical Data / Items Supplied

For attaching items under 1/8″ to 30 series t-slots
Closest inch screw 10-32
Ø5mm = .197 inches
Length 10mm = .394 inches

Applications

Assembly Info

To short for use in 45 series t-slots
Drill & tap a hole M5 x .8
Tighten screw using 3mm hex key

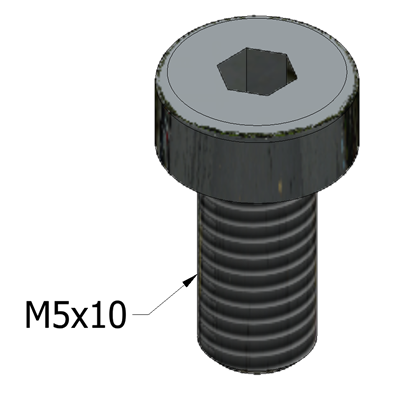

21.1279_M5x10-NEW_M

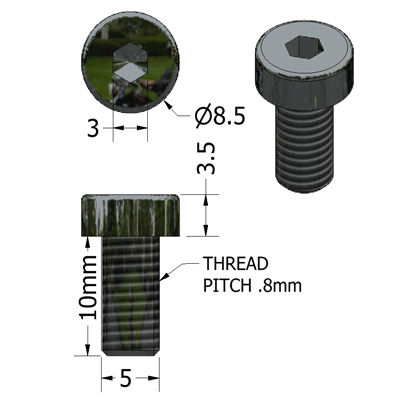

21.1279_M5x10-NEW_L

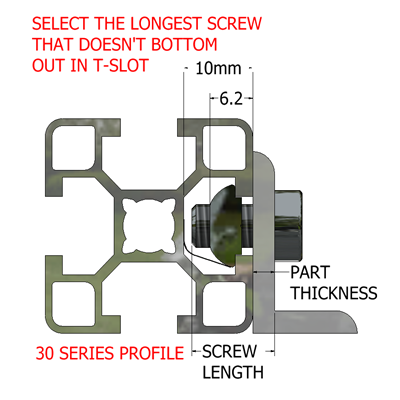

SCREW-LENGTH-CAP-SCREW-30-SRS-PROFILES
