M5x12 Button Head Flange Stainless

PART No 21.9953/1
$0.42 each
PART No: 21.9953/1$0.42 each
  • Material – Zinc Plated Steel
  • Thread – M5x0.8
  • Length – 12mm
  • Hex Drive – 3mm
PART No: 21.9953/1 Categories ,

Technical Data / Items Supplied

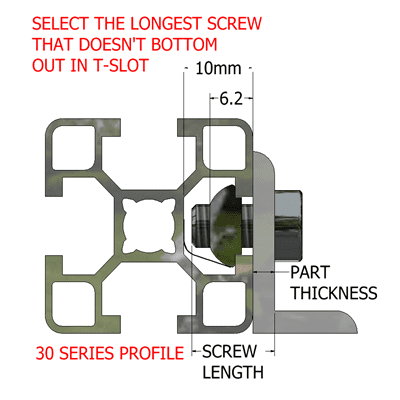

  • Fasten items less than 1mm or 1/32″ to 45 series profiles
  • Fasten items 1/16″ -3/16″ to 30 series profiles
  • Closest inch screw 10-32
  • Ø5mm = .197 inches
  • Length 12mm = .472 inches

Applications

Assembly Info

  • Press M5x0.8 square nut into t-slot
  • Insert screw thru clearance hole in part
  • Tighten screw using 3mm hex key
21.9953_1_M5X12_Button_Head_Flange_Stainless_L
21.9953_1_M5X12_Button_Head_Flange_Stainless_M
SCREW-LENGTH-CAP-SCREW-30-SRS-PROFILES

Downloads

3D Step
Inventor
