M5x16 Button Head Flange Screw Stainless

PART No 21.9954/1
$0.44 each
PART No: 21.9954/1$0.44 each
  • Material – Stainless Steel
  • Thread – M5x0.8
  • Length – 16mm
  • Hex Drive – 3mm
PART No: 21.9954/1 Categories ,

Technical Data / Items Supplied

  • Fasten parts 1.5mm-6mm (1/16in -1/4in) to t-slots of 45 series profiles
  • Closest inch screw 10-32
  • Ø5mm = .197 inches
  • Length 16mm = .630 inches

Applications

Assembly Info

  • Press M5x0.8 square nut into t-slot
  • Insert screw thru clearance hole in part
  • Tighten screw using 3mm hex key

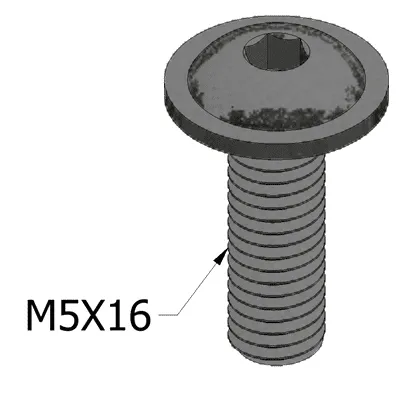

21.9954_1_M5X16_Button_Head_Flange_SS_L
21.9954_1_M5X16_Button_Head_Flange_SS_M
SCREW_LENGTHx300

Downloads

3D Step
Inventor
