M5x35 Cap Screw

PART N^o 21.2195

$0.55 each

PART N^o: 21.2195$0.55 each

Material – Zinc Plated Steel
Thread – M5x0.8
Length – 35mm
Hex Drive – 3mm
DIN – 7984

PART No: 21.2195 Categories Socket Head Cap Screws, Socket Head Cap Screws

Technical Data / Items Supplied

Fasten parts 20mm-25mm (5/8in -3/4in) to t-slots
Closest inch screw 10-32
Ø5mm = .197 inches
Length 35mm = .1.378 inches

Applications

Assembly Info

Press M5 square nut into t-slot
Insert screw thru clearance hole in part
Tighten screw using 3mm hex key

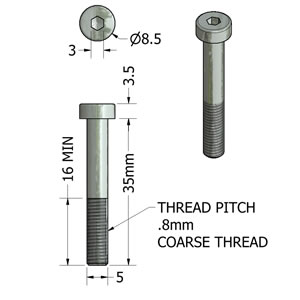

21.2195_M5x35_SHCS_L

21.2195_M5x35_SHCS_M

SCREW_LENGTHx300
