M8 Square Nut 30 With Pos FX

PART N^o 21.2343/2

$1.19 each

PART N^o: 21.2343/2$1.19 each

Fastening to 30 series t-slots
Spring tab holds nut in position even in vertical t-slots
Spring tab holds nut towards the top of the t-slot for easier engagement with the screw

PART No: 21.2343/2 Category: 30 Series Parts

Technical Data / Items Supplied

Steel, Zinc Plated
Threaded M8x1.25
Weight – .0038 kg

Applications

Assembly Info

Press in thru side of t-slot or slide in from ends
Select longest screw that doesn’t bottom out in t-slot
For 1/8″ thick parts use 12mm long M8 cap screw, Part # 21.1264
For 1/4″ thick parts use a 16mm long M8 cap screw Part # 21.1200 & An M8 Round Washer 21.1127

21.1570_M8_Square_Nut_30_MP

21.1570_M8_Square_Nut_30_L

21.1570_M8_Square_Nut_30_M

30_SERIES_POSITION_FIXING_NUT250

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

M6 Square Nut 30 With Pos FX

Part N^o 21.2342/2

M5 Square Nut 30 With Pos FX

Part N^o 21.2341/2

M8 Square Econo-Nut 30 SS

Part N^o 21.9180/1

Related Products

Products with similar features & uses

Power-Lock Fastener 30 SF

Part N^o 21.0016

Base Plate 30×60 M10

Part N^o 21.2115

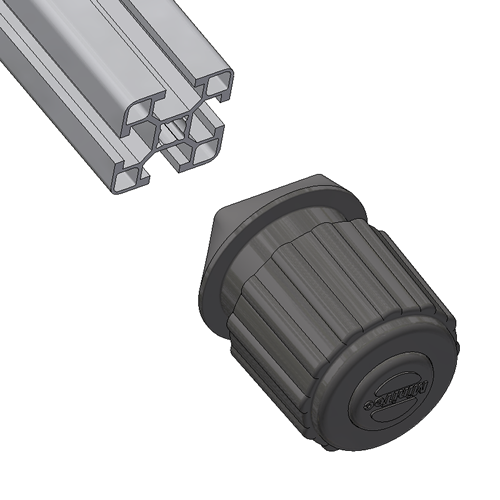

Foot 30 Compact
