M8x12 Button Head Flange Screw

PART N^o 21.9982

$0.53 each

PART N^o: 21.9982$0.53 each

Material – Zinc Plated Steel
Thread – M8x1.25
Length – 12mm
Hex Drive – 5mm

PART No: 21.9982 Categories Button Head Flange Screws, Button Head Flange Screws

Technical Data / Items Supplied

Closest inch screw 5/16-18
Ø8mm = .315 inches
Length 12mm = .472 inches

Applications

Assembly Info

Press M8x1.25 square nut into t-slot
Insert screw thru clearance hole in part
Tighten screw using 5mm hex key

21.9982_M8X12_Button_Head_Flange_L

21.9982_M8X12_Button_Head_Flange_M

SCREW LENGTH

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

M8 Square Nut W/Pos. Fixing

Part N^o 21.1351/2

M8x20 Button Head Flange Screw

Part N^o 21.9984

M8x16 Button Head Flange Screw

Part N^o 21.9983

Square Nut M8

Part N^o 21.1351

Related Products

Products with similar features & uses

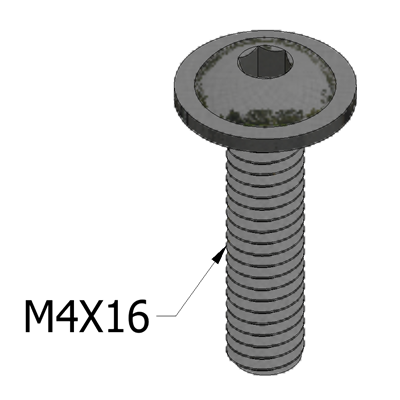

M4x16 Button Head Flange Screw Stainless

Part N^o 21.9945/1

M5x20 Button Head Flange Screw

Part N^o 21.9955

M6x25 Button Head Flange Screw

Part N^o 21.9966

M8x16 Button Head Flange Screw

Part N^o 21.9983
