M8x14 Set Screw Cone Point Zinc Plated

PART N^o 21.1303

$0.30 each

PART N^o: 21.1303$0.30 each

Used to fasten T-slot Bar Profile, Part # 21.1030 to 45 series profiles
Closest inch screw 5/16-18
Ø8mm = .315 inches
Length 14 mm = .551 inches

PART No: 21.1303 Categories Set Screws, Set Screws

Technical Data / Items Supplied

Steel, zinc plated
Din 914
Diameter 8 mm
Length 14 mm
Thread pitch 1.25 mm
Hex drive 4 mm
End type Cone Point

Applications

Assembly Info

Screw thru M8x1.25 tapped hole in t-slot bar until set screw bottoms out on profile & drives t-slot bar up

21.1303_M8x14_Set_Screw_Pointed_L

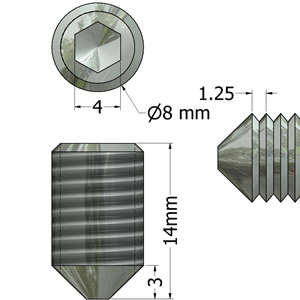

21.1303_M8x14_Set_Screw_Pointed_M
