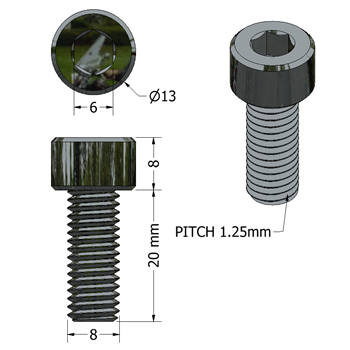

M8x20 Cap Screw High Head

PART No 21.1202/9
$0.24 each
PART No: 21.1202/9$0.24 each
  • Material – Zinc Plated Steel
  • Thread – M8x1.25
  • Length – 20mm
  • Hex Drive – 6mm
  • DIN – 912
PART No: 21.1202/9 Categories ,

Technical Data / Items Supplied

  • Fasten parts 6mm-10mm (1/4in -3/8in) to t-slots
  • Closest inch screw 5/16-18
  • Ø8mm = .315 inches
  • Length 20mm = .787 inches

Applications

Assembly Info

  • Press M8 square nut into t-slot
  • Insert screw thru clearance hole in part
  • Tighten screw using 6mm hex key
21.1202_9_M8x20_SHCS_HIGH-HEAD_L
21.1202_9_M8x20_SHCS_HIGH-HEAD_M
SCREW_LENGTHx300

Downloads

3D Step
Inventor
