M8x35 Cap Screw High Head

PART N^o 21.1208/9

$0.39 each

PART N^o: 21.1208/9$0.39 each

Material – Zinc Plated Steel
Thread – M8x1.25
Length – 35mm
Hex Drive – 6mm
DIN – 912

PART No: 21.1208/9 Categories Socket Head Cap Screws, Socket Head Cap Screws

Technical Data / Items Supplied

Fasten parts 20mm-25mm (13/16in-15/16in) to t-slots
Closest inch screw 5/16-18
Ø8mm = .315 inches
Length 35mm = 1.38 inches

Applications

Assembly Info

Press M8 square nut into t-slot
Insert screw thru clearance hole in part
Tighten screw using 6mm hex key

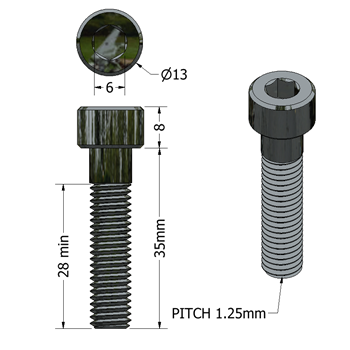

21.1208_9_M8x35_SHCS_HIGH-HEAD_L

21.1208_9_M8x35_SHCS_HIGH-HEAD_M

SCREW_LENGTHx300

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

M8 Square Nut W/Pos. Fixing

Part N^o 21.1351/2

Square Nut M8

Part N^o 21.1351

M8x30 Cap Screw High Head

Part N^o 21.1206/9

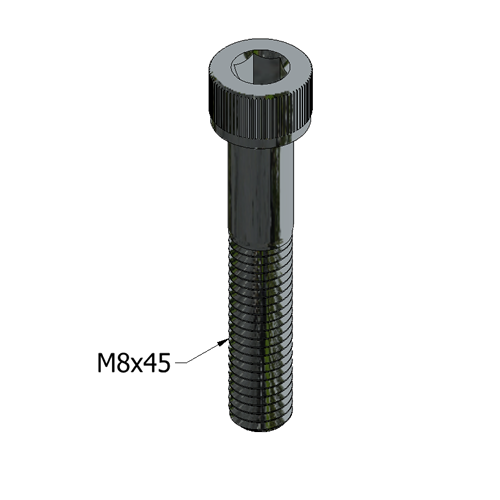

M8x45 Cap Screw High Head
