M8x40 Cap Screw

PART No 21.1210
$0.53 each
PART No: 21.1210$0.53 each
  • Connect profile that is 45mm thick to another profile face to face. Note that profiles can be parallel, perpendicular or even at an angle to each other.
  • This technique is often used to allow an entire wall of an assembly to be bolted on last.
  • Closest inch screw 5/16-18
  • Ø8mm = .315 inches
  • Length 40mm = 1.57 inches
PART No: 21.1210 Category:

Technical Data / Items Supplied

  • Steel, zinc plated Screw
  • 21.1351/2 M8 Square Nut With Position Fixing Sold Separately
  • Optional 22.1202/1 Hole Cap Ø15mm Sold Separately
  • Diameter 8 mm
  • Length 40 mm
  • Thread pitch 1.25 mm
  • Hex drive 5 mm

Applications

Assembly Info

  • Press M8 square nut into t-slot
  • Insert screw thru clearance hole in part
  • Tighten screw using 5mm hex key

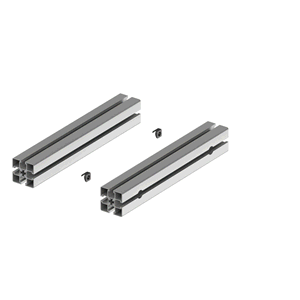

21.1210_M8x40_Parallel_Profile_Fastener_300
21.1210_M8x40_SHCS_L

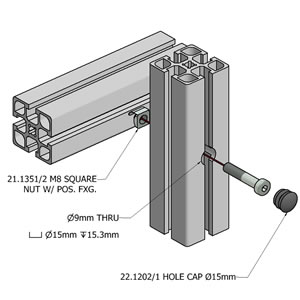

21.1210_M8x40_Parallel_Profile_Fastener_M

Downloads

3D Step
Solidworks
Inventor
