Magnetic Catch 30

PART No 21.9310
$12.65 each
PART No: 21.9310$12.65 each
  • Particularly use full for unframed doors on 30 series profiles.
PART No: 21.9310 Category:

Technical Data / Items Supplied

  • Magnet with black nylon housing
  • -M4 x 5 Pan Head Screw
  • Qty 2, M4 x 12 Zinc Plated Screws
  • Qty 2, M4 Nuts With Position Fixing (30 series)
  • Holding force 5N on front & 3N on back
  • Weight – .023 kg

Applications

Assembly Info

  • Mount magnet housing to 30 series profiles with supplied hardware
  • Drill 3.5mm hole & self thread pan head screw into soft plastics, like polycarbonate or high density polycarbonate
  • Drill 3.5mm hole & cut tap M4 x .7 into metals or harder more brittle plastics

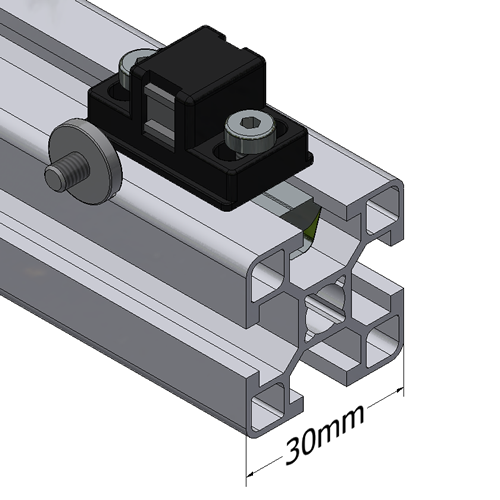

21.9310_MAGNETIC_CATCH_30_MP

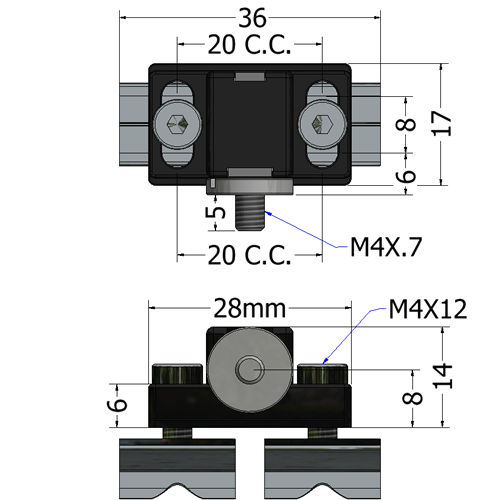

21.9310_MAGNETIC_CATCH_30_L

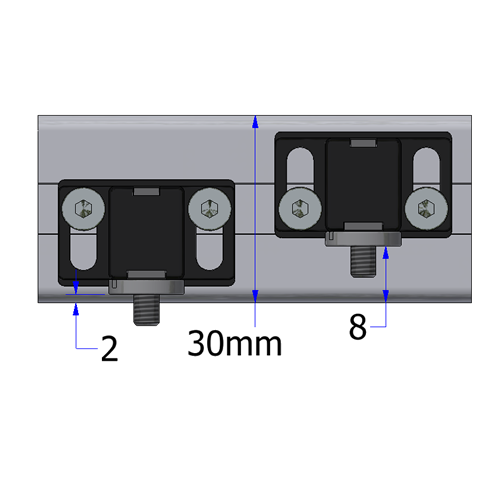

21.9310_MAGNETIC_CATCH_30_M

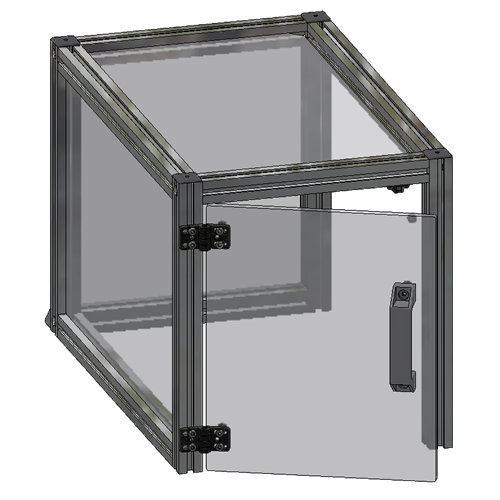

21.9310_MAGNETIC_CATCH_30_R

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

21.0959_SLIDING_DOOR_LOCK_30_MP

Sliding Door Latch 30

Part No 21.0959
21.0949_Rotary_Lock_30_MP

Rotary Latch 30

Part No 21.0949
22.1158_DISTANCE_PROFILE_30_MP

Distance Profile 30

Part No 22.1158

Related Products

Products with similar features & uses

Base_Plate_30x60_Main_Page

Base Plate 30×60 M10

Part No 21.2115
Base_Plate_30x60_Main_Page

Base Plate 30×60 M12

Part No 21.2116

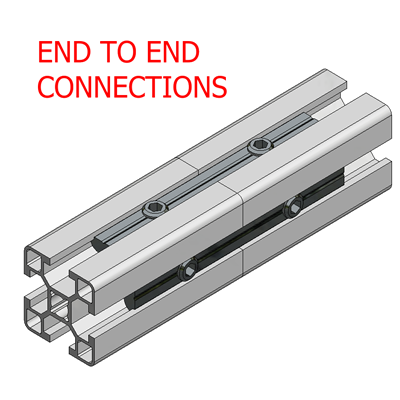

21.0043-T-SLOT_BAR_30-90_MP
