Mesh Fastener 45

PART No 21.9580
$12.49 each
PART No: 21.9580$12.49 each
  • Mounting 1/2″ x 1/2″ & 1″ x 1″ mesh to 45 series profiles
  • For use with T-slots that are 22.5mm on center from profile edge
  • When additional security is required to ensure a panel cannot be driven out of the t-slots
  • Particularly useful for panels that are two week to stay in slots
  • Note: It usually takes several hundred pounds of force to remove most panels from the t-slots. 1″ x 1″ mesh can come out with less.
  • 1/2 x 1/2 mesh & 1/8″ polycarbonate come out the most easily
PART No: 21.9580 Category:

Technical Data / Items Supplied

  • Qty 1 Aluminum Z Bracket anodized
  • Qty 1, Aluminum Back Plate with M8x1.25′ thread, anodized
  • Qty 2, M8x20 SHCS
  • Qty 2, M8 Round Washer
  • Qty 1, M8 Square Nut With Position Fixing
  • Weight – .134kg

Applications

Assembly Info

  • No processing required when used with 1/2″ x 1/2″ or 1″ x 1″ mesh. Simply bolt Z bracket to profile t-slot with supplied hardware
  • Position threaded back plate behind panel & insert screw thru slot in bracket & hole in panel
  • For solid panels drill Ø9mm hole 22.5mm from profile edge

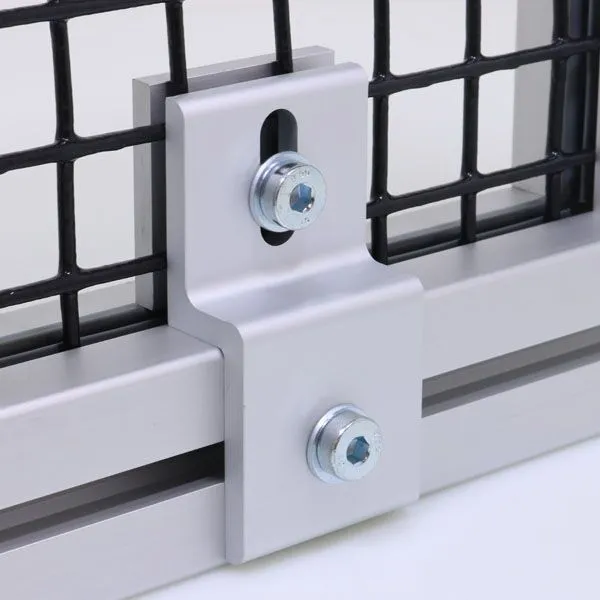

21.9580-Mesh-Fastener-45-Photo
21.9580_Mesh_Fastener_45_L
21.9580_Mesh_Fastener_45_M
21.9580_Mesh_Fastener_45_R
