Miter Connector

PART No 21.1400
$14.85 each
PART No: 21.1400$14.85 each
  • End to end miter connections
  • Additional machining required if set screws mounted 90 degrees from drawing above
PART No: 21.1400 Category:

Technical Data / Items Supplied

  • Hinged body steel, zinc plated
  • 2 M8x20 set screws
  • 2 M8 square nuts
  • Weight – .065 kg

Applications

Assembly Info

CLICK HERE FOR PDF
21.1400_Miter_Connector_MP
21.1400_Miter_Connector_L
21.1400_Miter_Connector_M
21.1400_Miter_Connector_R

Downloads

3D Step
Solidworks
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

21.1401_MITER_CONNECTOR_N_MP

Miter Connector N

Part No 21.1401

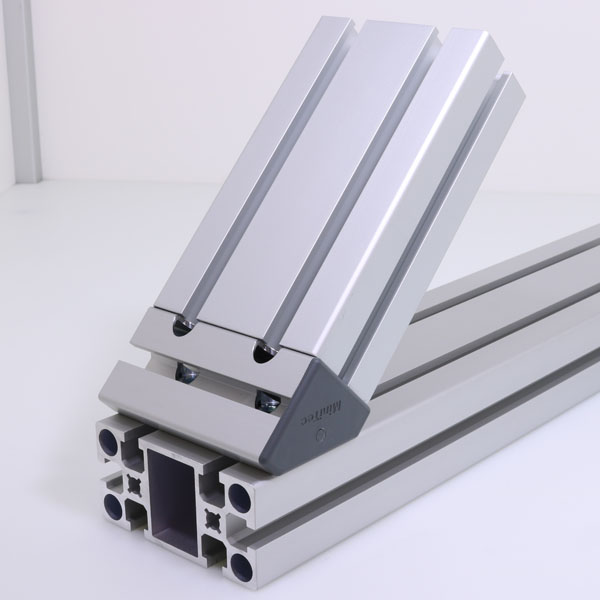

21.1727-Brace-Socket-45x90-Photo
