Parallel Slide Bar

PART No 22.1041
Price range: $0.00 through $74.49 each
  • Low friction guide for relative motion between two profiles
  • Guide for sliding doors & drawers

Cost per inch = $0.95

(2.00 meters)

Min = 12.00 in | Max = 78.74 in

A cut fee of $3.03 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

PART No: 22.1041 Categories , Tag

Technical Data / Items Supplied

  • UHMW hard plastic, black
  • Extremely low friction & wear resistant
  • Order cut precisely to size +/- .010″
  • For cut charge use Part # 25.1093
  • Full Length – 2m
  • Weight – .387 kg/m

Applications

Assembly Info

  • Slide into profile groove
  • Can be drilled & tapped for set screw to fix in position
  • Alternatively c’bore for screw & mill clearance for square nut to lock in position

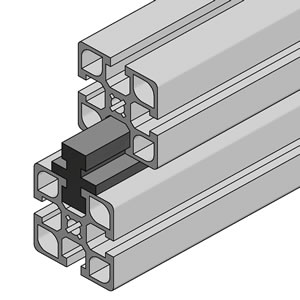

22.1041_Parallel_Slide_Bar_MP

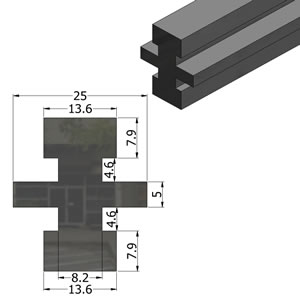

22.1041_Parallel_Slide_Bar_L

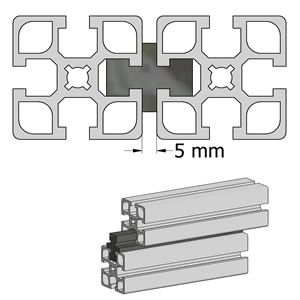

22.1041_Parallel_Slide_Bar_M
ParallelSlideElement-300

Downloads

3D Step
Solidworks
Inventor
