PVC Bar 1/4″ Dia.

PART No 22.1077
Price range: $0.00 through $7.80 each
  • Make Guide Profile 2 & Guide Profile 3 sliding door systems lift removable

Cost per inch = $0.10

(2.00 meters)

Min = 12.00 in | Max = 78.74 in

A cut fee of $1.65 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

PART No: 22.1077 Category: Tag

Technical Data / Items Supplied

  • PVC plastic, white
  • Order cut to any size Tolerance +/- .03″
  • For cut charge use Part # 25.1082
  • Full Length – 3m
  • Weight – .04 kg/m

Applications

Assembly Info

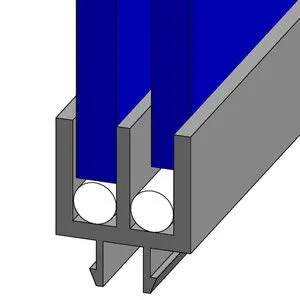

  • Insert into the lower tracks of guide profile 2 & 3
22.1077_LIFT_OFF_PANEL_300

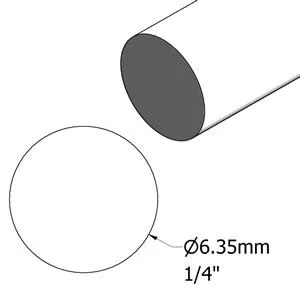

22.1077_PVC_Bar_L
22.1077_PVC_Bar_M

Downloads

3D Step
Solidworks
Inventor
