Rod Lock W/Handle With Lock

PART N^o 21.1788/5

PART N^o: 21.1788/5 each

●Holding a door closed using the top and/or bottom rails of the frame
●Especially useful for double doors
●Many possible configurations exist. Call or send a drawing of your design for technical assistance

PART No: 21.1788/5 Category: Rod Locks

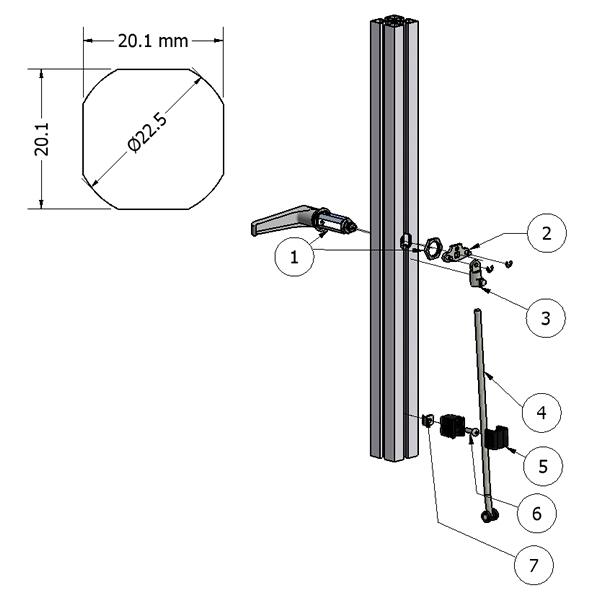

Technical Data / Items Supplied

1) – Qty 1 Handle 32 With Lock, Part # 21.1091/4
2) – Qty 1 Two Point Cam, Part # 21.1166
3) – Qty 1 Rod Cam Adaptor, Part # 21.1167
4) – Qty 1 Rod With Roller, Part # 21.1168
5) – Qty 1 Rod Guide 24, Part # 21.1169/9
6) – Qty 1, M6x16 SHCS, Part # 21.1238
7) – Qty 1, M6 Square Nut With Position Fixing, Part # 21.1330/2

Applications

Assembly Info

? Mill slot in profile left drawing)
? Alternatively drill Ø22mm hole thru profile & prevent rotation using the Twist Stop F, Part # 21.0941
? Fasten handle to profile using hex nut
? Fasten two point cam to handle using M6 screw in handle end
? Remove clip washer from two point cam and snap on Rod Cam Adaptors
? Cut steel rod to size & insert in Rod/Cam Adaptor. Tighten M5 hex bolt
? Fasten Rod guides to profile using supplied M6 screw & nut
? Place rod in groove & snap on cap

MP21.1788_5_ROD_LOCK

21.1788_3_5_L_BIG

Rod_Lock_Side

Rod_Lock_Dimensions
