Rolling Door Element

PART N^o 21.2000

$55.33 each

PART N^o: 21.2000$55.33 each

Single & double sliding doors for machine guards, machine enclosures, exhibition stands etc.

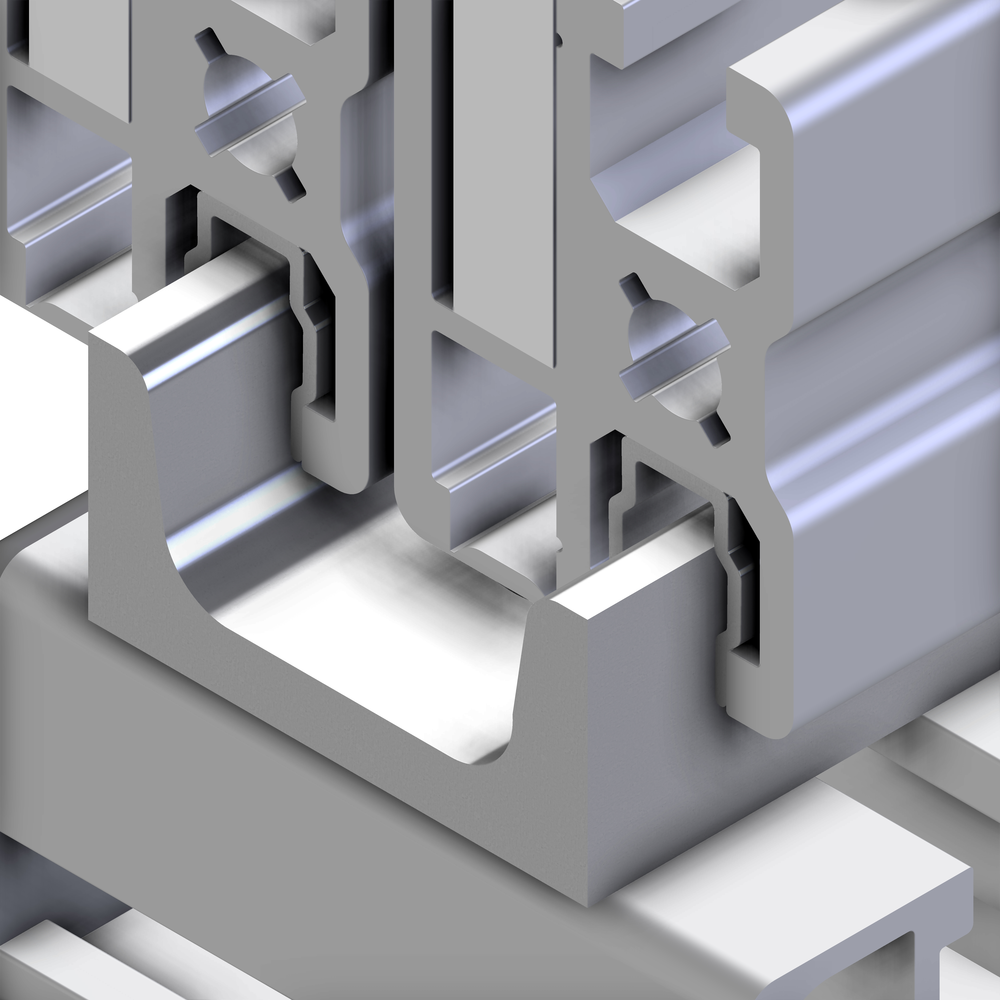

Guide door at bottom using U-bar for sliding door Part # 21.2002
MiniTec’s plastic slide bars can also be use to provide door guidance

PART No: 21.2000 Category: Rolling Door System

Technical Data / Items Supplied

Plastic roller with ball bearing
Zinc plated steel mounting bracket
Qty 2 M5x16 countersunk screw
Qty 2 M5 square nuts
Load max. (roller) – 60 kg
Weight – .080 kg

Applications

Assembly Info

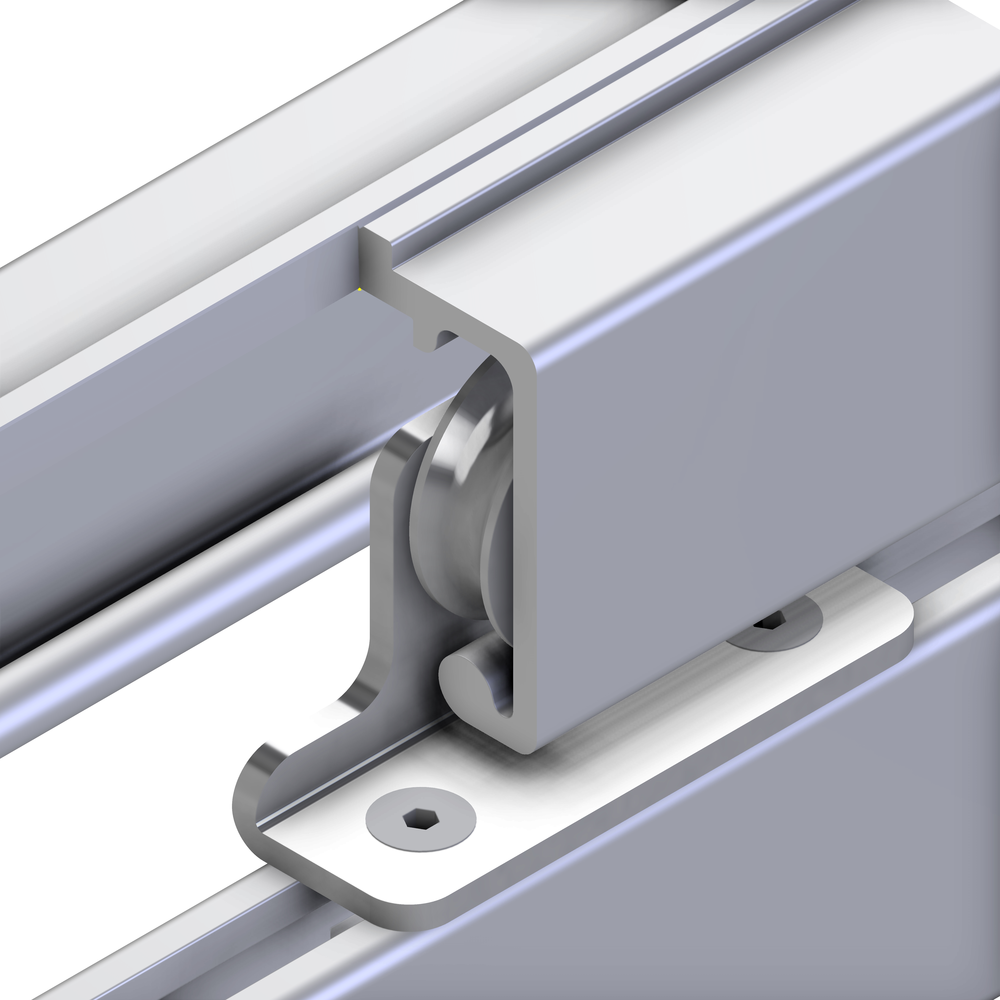

Fasten steel bracket to upper T-slot of door using supplied M5 hardware
Insert rollers into opening on track and lower rollers onto one of the rounded surfaces
Above design uses Clamp Profile 45×32. Other configurations possible.

ABB_PRO_212000-0-dcbe9

21.2000_Roller_Element_For_Sliding_Door_L

21.2000_Roller_Element_For_Sliding_Door_M

21.2000_Roller_Element_For_Sliding_Door_R
