Rotary Latch 45

PART No 21.0948
$79.20 each
PART No: 21.0948$79.20 each
  • Key lockable 1/4 turn latch for swinging doors made from 45×45 profile
  • This handle also acts as a door stop
  • Handle is simply bolted to the t-slots so it is moveable up & down.
PART No: 21.0948 Categories ,

Technical Data / Items Supplied

  • Cast aluminum housing, powder coated gray
  • Handle includes cam & M6 screws & nuts for mounting
  • Two keys (all handles are keyed the same)
  • Handles have a body length of 18mm (Handle 8)
  • Weight – .476 kg

Applications

Assembly Info

  • No processing required. Simply mount to door & frame with supplied hardware.
  • Leave approximately a 5mm (.2″) gap between door & frame.

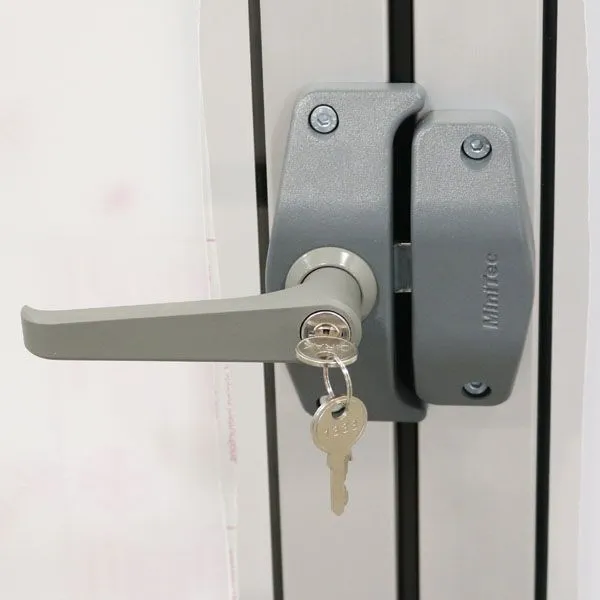

21.0948-Rotary-Latch-45-Photo
21.0948_ROTARY_LOCK_45_L
21.0948_ROTARY_LOCK_45_M
21.0948_ROTARY_LOCK_45_R

Downloads

3D Step
Solidworks
Inventor
