Rotational Element

PART No 28.9000
$165.00 each
PART No: 28.9000$165.00 each
  • Ergonomic workstations & tables
  • Lazy susans
PART No: 28.9000 Category:

Technical Data / Items Supplied

  • Anodized Aluminum Plates
  • 5200 2RS Sealed Steel Double Row Angular Contact Bearing10mm ID – 30MM OD
  • Steel Spacer
  • 4 M8 Square Nuts With Position Fixing
  • M8 Shoulder Bolt With 10mm Shoulder
  • 2 M8x22 SHCS
  • 2 M8x35 SHCS
  • Weight – .44 kg
  • Radial Load Max. – 1780 N (400 lbf)
  • Thrust Load Max 890N (200lbf)
  • Moment Load Max 27 N-M (20 ft-lb)

Applications

Assembly Info

  • Ships fully assembled
  • Fasten to 45 series with included hardware using a 5mm hex key

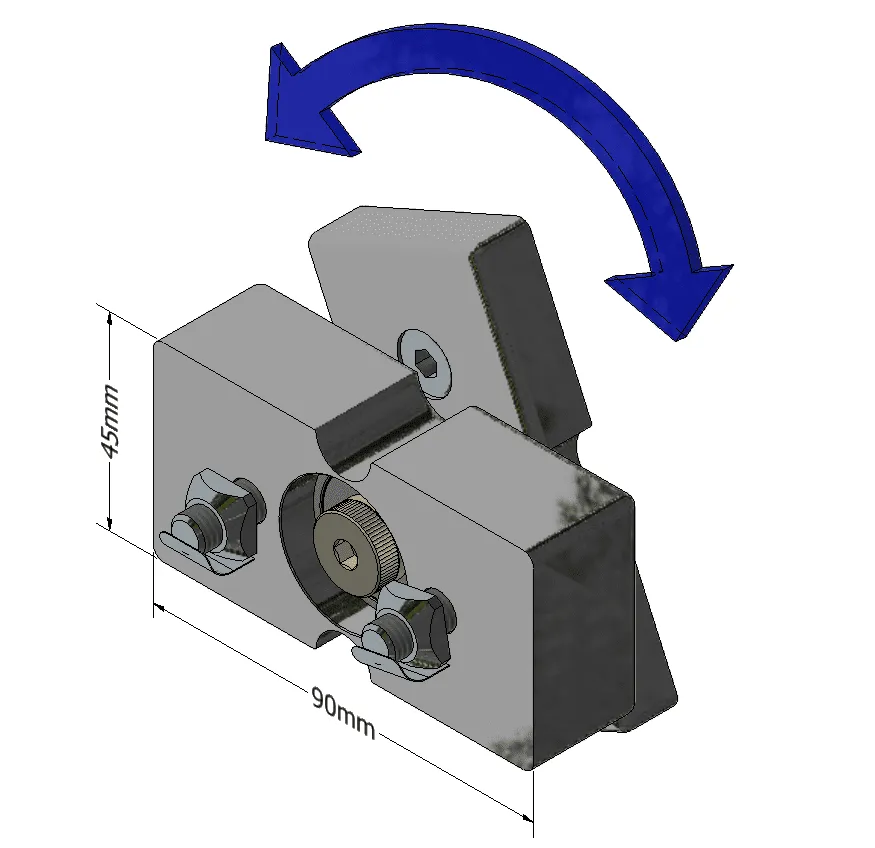

28.9000-ROTATIONAL-ELEMENT-MP

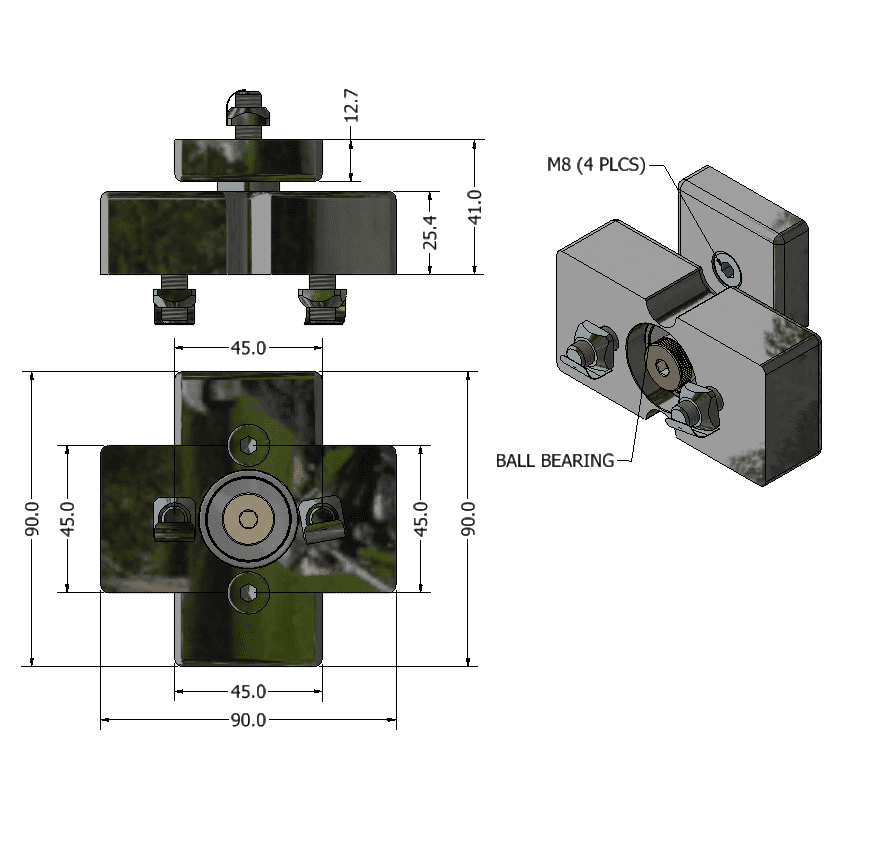

28.9000-ROTATIONAL-ELEMENT-L
28.9000-ROTATIONAL-ELEMENT-M
28.9000-ROTATIONAL-ELEMENT-R

Downloads

3D Step
