Slide Lock M6x50

PART No 21.1013/1
$19.97 each
PART No: 21.1013/1$19.97 each
  • Slide Lock
  • Fixing items to the t-slots that need to be moved periodically
PART No: 21.1013/1 Category:

Technical Data / Items Supplied

  • Black powder coated zinc die cast handle with black oxide plated steel stud
  • Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage
  • M6 nut sold separately
  • Weight – .08kg

Applications

Assembly Info

  • Ships fully assembled
  • Push down on screw head while pulling on lever handle to disengage & reposition handle to desired location

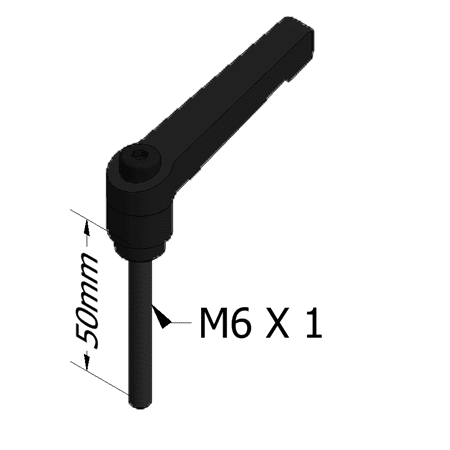

21.1013_1-M6x50-SLIDE-LOCK_MP

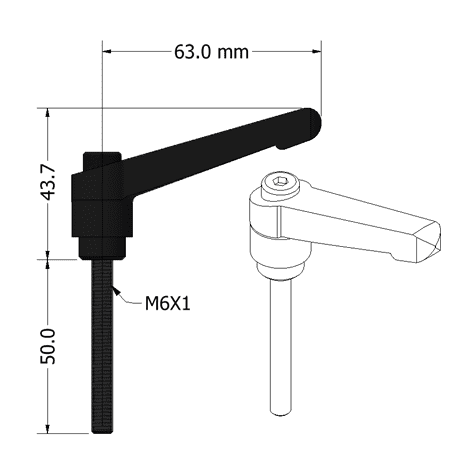

21.1013_1-M6x50-SLIDE-LOCK_L

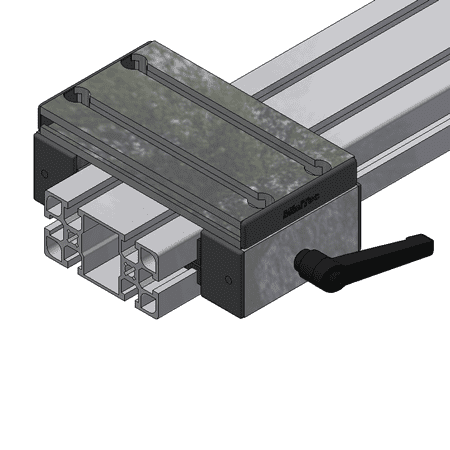

21.1013_1-M6x50-SLIDE-LOCK_M

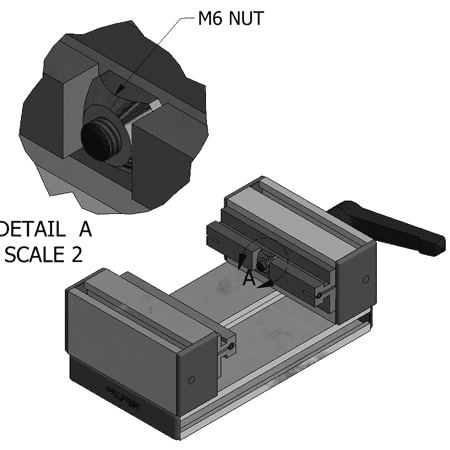

21.1013_1-M6x50-SLIDE-LOCK_R

Downloads

3D Step
Inventor
