Clamping Lever M8x16

PART No 21.2015
$19.97 each
PART No: 21.2015$19.97 each
  • Adjustable positioning on t-slotted profiles
  • Particularly useful when higher clamping torque is desired
  • Suitable for clamping items between 1mm to 6mm (1/16″ -1/4″) thick to 45 series profiles
  • Suitable for clamping items between 6mm & 10mm (1/4″ -3/8″) to 30 series profiles
PART No: 21.2015 Category:

Technical Data / Items Supplied

  • Black steel ratchet handle
  • Thread length = 16mm
  • Thread M8
  • Pitch 1.25mm
  • 21.1351 M8 square nut sold separately for use with 45 series profiles
  • 21.1570 M8 square nut sold separately for use with 30 series profiles
  • Weight -.1 kg

Applications

Assembly Info

  • Ships fully assembled
  • Push down on screw head while pulling on lever handle to disengage & reposition handle to desired location

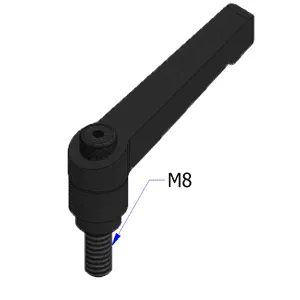

21.2015_CLAMPING_LEVER_M8X16_MP
21.2015_CLAMPING_LEVER_M8X16_L
21.2015_CLAMPING_LEVER_M8X16_M
21.2015_CLAMPING_LEVER_M8X16_R
