Adaptor Plate T45/90 Standard

PART No 28.0112/9
$115.50 each
PART No: 28.0112/9$115.50 each

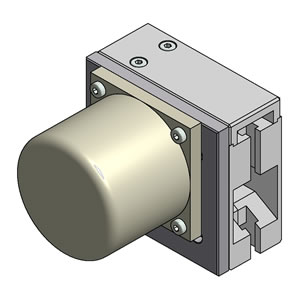

  • Mounting of motor to T45 & T90 pulley reverse units
  • For mounting motors & gearboxes
PART No: 28.0112/9 Categories ,

Technical Data / Items Supplied

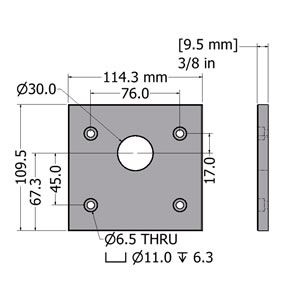

  • Aluminum, natural 3/8″ Thick
  • Plate can be further machined for a particular motor
  • Send print of desired plate or print of motor
  • Also, send physical motor for mounting if desired
  • Weight – .3 kg

Applications

Assembly Info

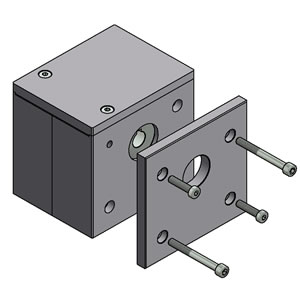

  • Mount plate to timing belt pulley using existing pulley hole pattern when possible. M6 Mounting hardware sold separately
28.0112_9_Adaptor_Plate_T45-90_Standard_MP
28.0112_9_Adaptor_Plate_T45-90_Standard_L
28.0112_9_Adaptor_Plate_T45-90_Standard_M
28.0112_9_Adaptor_Plate_T45-90_Standard_R

Downloads

3D Step
Solidworks
Inventor
