Timing Belt Pulley T90

PART N^o 28.0082

$522.50 each

PART N^o: 28.0082$522.50 each

Timing belt reverse unit for LR12 & LR16 90mm wide rails & slides
Re bore & key 8mm pilot to inch or metric size up to Ø30mm
Use as idler pulley
Heavy duty linear motion
Use adaptor plate for mounting NEMA 23, NEMA 34 & NEMA 42 motors & gearboxes

PART No: 28.0082 Category: 90mm Pulleys

Technical Data / Items Supplied

Aluminum housing, clear anodized
32AT10 aluminum pulley, 19 teeth
Qty 2, Steel Ball Bearings
Zinc plated fastening hardware
Bore Dia. – 8 mm No key
Reborable to: – 30 mm
Travel (1 Rev) – 190 mm
Frictional moment at 1/1000 belt tensioning – .35 Nm
Max load – 130 Nm
Weight – 2.73 Kg.

Applications

Assembly Info

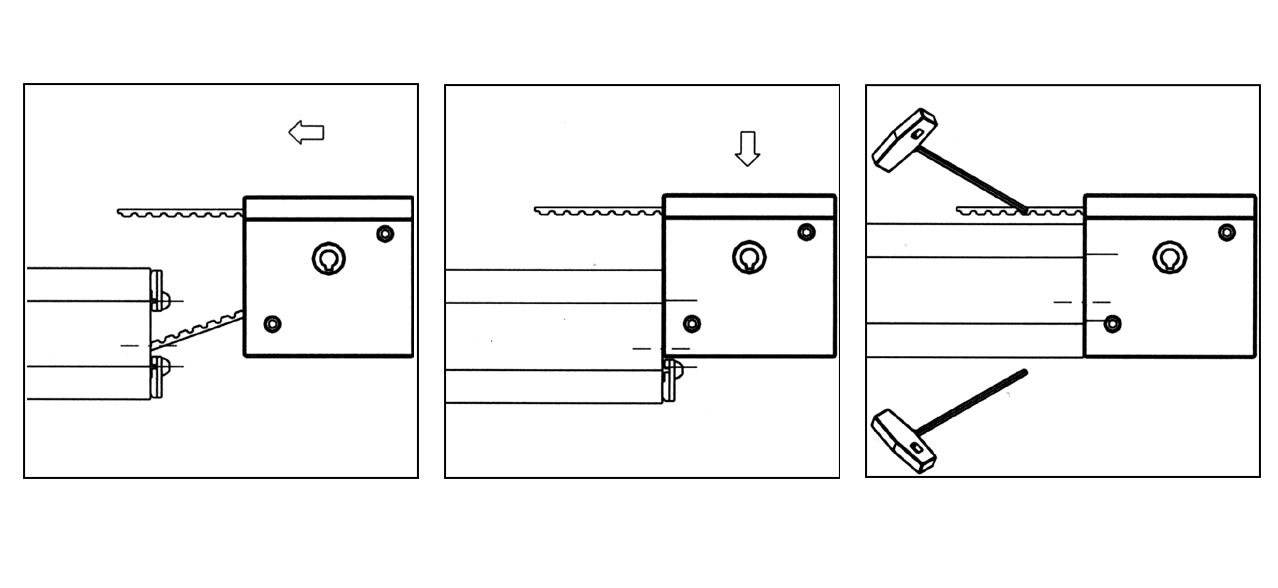

Install four Power-Lock Fasteners On the End of Rail 90
Feed Timing Belt 32AT10 thru reverse unit
To see install diagram, click the picture above
Attach timing belt to Slide LW 90 using the Timing Belt Tensioner
Belt length in reverse unit = 210 mm
Timing belt length = (2xrail length) +(2x210mm)-slide length-(2x20mm for tensioners)
