Adjusting Unit VEN 45×90 S With Top Lock

PART N^o 21.0187/1

PART N^o: 21.0187/1 each

Unit will not back drive, even when vertical & under full load
General screw driven linear positioning
Over conveyor positioning of reader & print heads
Positioning of sensors

PART No: 21.0187/1 Category: Lead Screw Slides

Technical Data / Items Supplied

Fully assembled lead screw driven linear positioner
Standard travel 12″ (305mm)
other travel lengths available on request
Acme 16×4 screw & bronze nut
Two UHMW Polyethylene Plastic Bearings
Plastic hand crank (fold down handle is optional)
28.0270/9 top lock
Max Load – 450 N (101 lbf)
Max Travel – 71.5″
Basic Weight (no travel) – 2.6 kg (5.7 lbs)
Weight/100mm(3.94″) stroke – .5 kg (1.1 lbs)

Applications

Assembly Info

Linear positioner ships fully assembled

28.0187_1_Adj_Unit_VEN_45x90S_Top_Lock_L

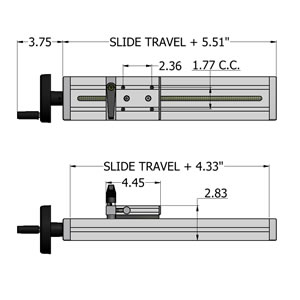

28.0187_1_Adj_Unit_VEN_45x90S_Top_Lock_M

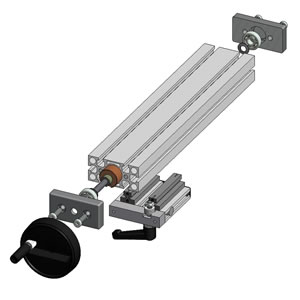

28.0187_1_Adj_Unit_VEN_45x90S_Top_Lock_R

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

Adjusting Unit VEN 45x90H

Part N^o 28.0185

Adj.VEN 45x90H W/Top Lock

Part N^o 28.0185/1

Adjusting Unit VEN 45×90 S

Part N^o 28.0187

Slide G 32

Part N^o 28.0355

Related Products

Products with similar features & uses

Adj. VEN 45x90H W/Side Lock

Part N^o 28.0185/2

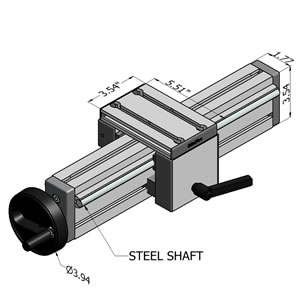

Adj. VEW45x90H W/Side Clamp

Part N^o 28.0182/2

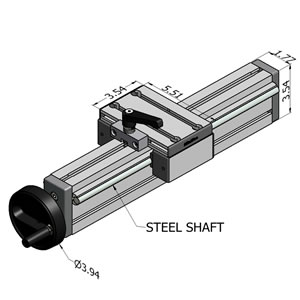

Adj. VEW45x90H W/Top Clamp

Part N^o 28.0182/1

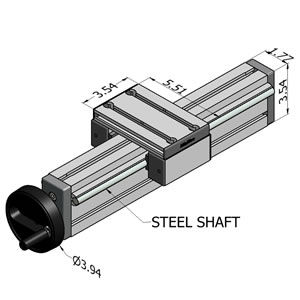

Adjusting Unit VEW 45x90H
