Adj.VEN 45x90H W/Top Lock

This is a custom product - CLICK HERE to get a quote!
PART No 28.0185/1
PART No: 28.0185/1 each
  • Unit will not back drive, even when vertical & under full load
  • General screw driven linear positioning
  • Over conveyor positioning of reader & print heads
  • Positioning of sensors
PART No: 28.0185/1 Category:

Technical Data / Items Supplied

  • Fully assembled lead screw driven linear positioner
  • Standard travel 12″ (305mm)
  • other travel lengths available on request
  • Acme 16×4 screw & bronze nut
  • Two UHMW Polyethylene Plastic Bearings
  • Plastic hand crank (fold down handle is optional)
  • 28.0270/9 Slide Clamp Unit
  • Max Load – 450 N (101 lbf)
  • Max Travel – 71.5″
  • Basic Weight – 2.3 kg (5.1 lbs)
  • Weight/100mm(3.94″) stroke – .49 kg (1.08 lbs)

Applications

Assembly Info

  • Linear positioner ships fully assembled

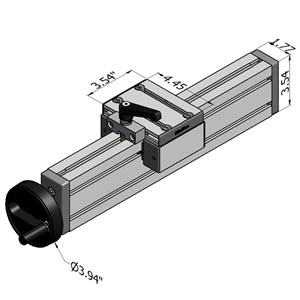

28.0185_1_Adj_Unit_VEN_45x90H_Top_Lock_L
28.0185_1_Adj_Unit_VEN_45x90H_Top_Lock_M

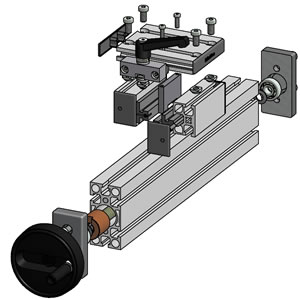

28.0185_1_Adj_Unit_VEN_45x90H_Top_Lock_R

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

28.0185_2_Adj_Unit_VEN_45x90H_Side_Lock_L

Adj. VEN 45x90H W/Side Lock

Part No 28.0185/2
28.0188_Adj_Unit_VEN_45x90F_L

Adjusting Unit VEN 45×90 F

Part No 28.0188

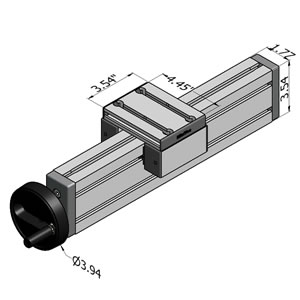

28.0185_Adj_Unit_VEN_45x90H_L

Adjusting Unit VEN 45x90H

Part No 28.0185

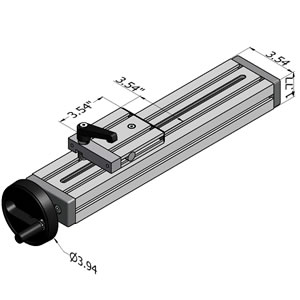

28.0187_1_Adj_Unit_VEN_45x90S_Top_Lock_L
