Adjusting Unit VEW 90

This is a custom product - CLICK HERE to get a quote!
PART No 28.0183
PART No: 28.0183 each
  • General screw driven linear positioning
  • Unit will not back drive even under full load vertically
  • Over conveyor positioning of reader & print heads
  • Positioning of sensors
PART No: 28.0183 Category:

Technical Data / Items Supplied

  • Fully assembled lead screw driven linear positioner
  • UHMW bearings Slide Rail LG ride on hardened steel bearing shaft 12
  • Standard travel 305mm
  • other travel lengths available on request
  • Acme 16×4 screw & bronze nut
  • Plastic hand crank (fold down handle is optional)
  • Max Load – 450 N (101 lbf)
  • Max Travel – 72.25″
  • Basic Weight – 3.03 kg
  • Weight/100mm stroke – 1.12 kg

Applications

Assembly Info

  • Linear positioner ships fully assembled

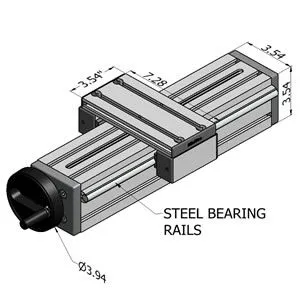

28.0183_Adj_Unit_VEW_90_L

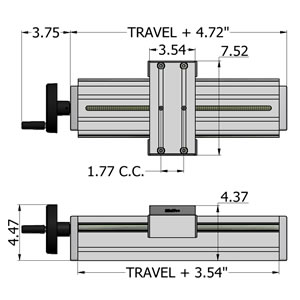

28.0183_Adj_Unit_VEW_90_M

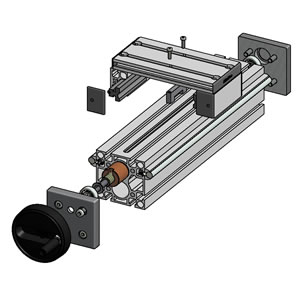

28.0183_Adj_Unit_VEW_90_R

Downloads

3D Step
Inventor

Have a Question About This Product?

We’d love to hear from you!

Get in Touch

Add-On Products

Products that pair well with this item

28.0183_1_Adj_Unit_VEW_90_Top_Lock_L

Adj Unit VEW90 W/Top Clamp

Part No 28.0183/1

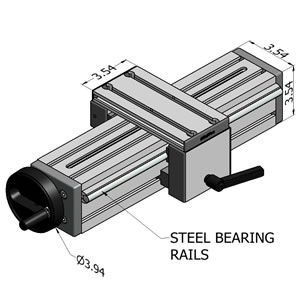

28.0183_2_Adj_Unit_VEW_90_Side_Lock_L

Adj Unit VEW90 W/Side Clamp

Part No 28.0183/2

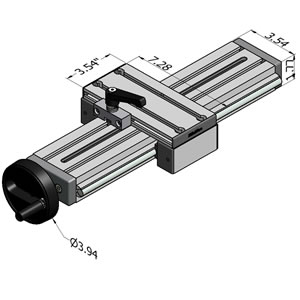

28.0181_1_Adj_Unit_VEW_45x90F_Top_Lock_L
