Adjusting Unit VEW 45x90F

This is a custom product - CLICK HERE to get a quote!
PART No 28.0181
PART No: 28.0181 each
  • General screw driven linear positioning
  • Unit will not back drive even when vertical under full load
  • Over conveyor positioning of reader & print heads
  • Positioning of sensors
PART No: 28.0181 Category:

Technical Data / Items Supplied

  • Fully assembled lead screw driven linear positioner
  • UHMW bearings Slide Rail LG ride on hardened steel bearing shaft 12
  • Standard travel 305mm
  • other travel lengths available on request
  • Acme 16×4 screw & bronze nut
  • Plastic hand crank (fold down handle is optional)
  • Max Load – 450 N (101 lbf)
  • Max Travel – 72.25″
  • Basic Weight – 2.31 kg
  • Weight/100mm stroke – .75 kg

Applications

Assembly Info

  • Linear positioner ships fully assembled

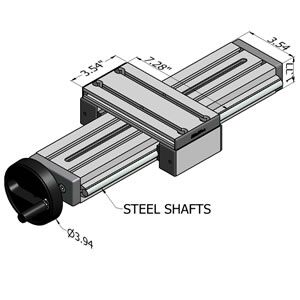

28.0181_Adj_Unit_VEW_45x90F_L
28.0181_Adj_Unit_VEW_45x90F_M
28.0181_Adj_Unit_VEW_45x90F_R

Downloads

3D Step
Inventor
