AL Angle 1.5″ x 1.5″ x 1/8″

This is a custom product - CLICK HERE to get a quote!
PART No 20.9005
PART No: 20.9005 each
  • Lip for removable panels
  • Door jambs
  • Custom brackets
  • Lip for lift off lid
PART No: 20.9005 Category:

Technical Data / Items Supplied

  • 6463 Aluminum angle
  • Satin clear anodize
  • For Cut Charge Use part # 25.1094
  • Max length 12 ft
  • Weight – .422 lbs/ft

Applications

Assembly Info

  • Drill & countersink for M6 flathead.
  • Fasten to t-slots using M6x16 countersunk screw 21.1506 & M6 square nut 21.1330
21.9005_AL_Angle_.1.5x.1.5in_MP

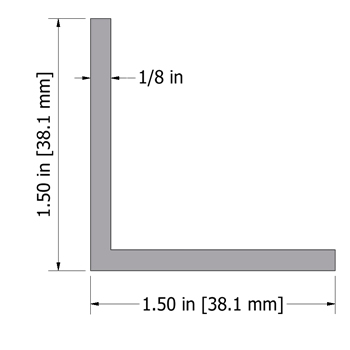

20.9005_AL_Angle_.1.5x.1.5in_L
20.9005_AL_Angle_.1.5x.1.5in_M
20.9005_AL_Angle_.1.5x.1.5in_R

Downloads

3D Step
Solidworks
Inventor
