AL Angle 1.75″x1.75″x 1/4″

This is a custom product - CLICK HERE to get a quote!
PART No 20.9006
PART No: 20.9006 each
  • Custom angle brackets for 45 series profiles
  • 1/4″ thick wall suitable for tapping threaded holes
  • Custom mounting brackets
PART No: 20.9006 Category:

Technical Data / Items Supplied

  • 6061 aluminum, mill finish
  • Order cut precisely to size or in full lengths
  • CNC machining services available
  • E-mail prints to: sales@minitecframing.com
  • For Cut Charge Use Part # 25.1094
  • Full Length – 25 Feet
  • Weight – .95 Lbs/FT

Applications

Assembly Info

  • Drill thru & mount to profile with a screw & t-nut
20.9006_AL_ANGLE_1.75X1.75_MP

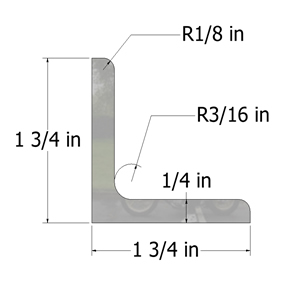

20.9006_AL_ANGLE_1.75X1.75_L

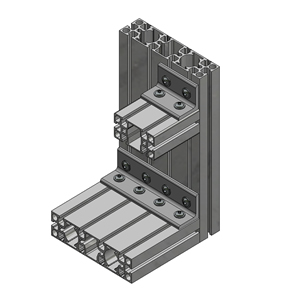

20.9006_AL_ANGLE_1.75X1.75_M

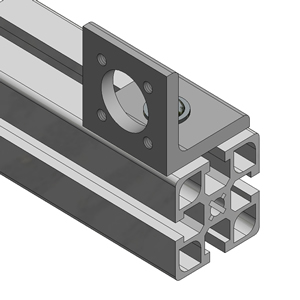

20.9006_AL_ANGLE_1.75X1.75_R

Downloads

3D Step
Inventor
