Angle 45×90 GD-Z w/ Pos. Fixing Nuts

PART N^o 21.1397/7

$16.39 each

PART N^o: 21.1397/7$16.39 each

Particlulary useful for subsequent attachment of profiles to existing frames
Can be used over a Power-Lock to stiffen joint
Fixing of panel elements & table tops

PART No: 21.1397/7 Category: Gusset/Angle Fasteners

Technical Data / Items Supplied

Qty 1 Cast Aluminum Angle Material GD-AL Si9 Cu3 , Powder Coated Gray (RAL # 7012)
Qty 4 M8x22 SHCS
Qty 4 M8 Round Washers
Qty 4 M8 Square Nuts With Position Fixing
Order with standard nuts using Part # 21.1397
End Cap 22.0998/1 Sold Separately
Weight – .281 kg

Applications

Assembly Info

Place washer between screw and angle
Recommended locking torque 20 Nm

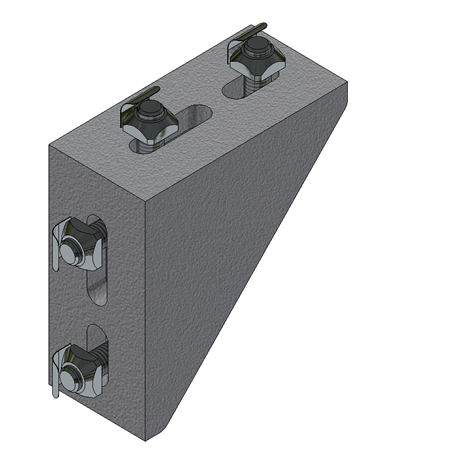

21.1397_7_ANGLE_45X90_GD-Z_WITH_POSITION_FIXING_NUTS_MP

21.1397_ANGLE_45X90_GD-Z_L

21.1397_ANGLE_45X90_GD-Z_M

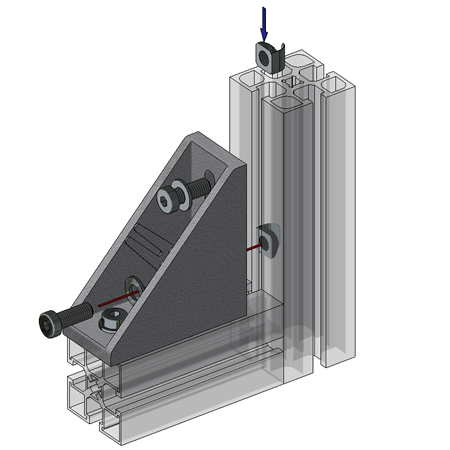

21.1397_7_ANGLE_45X90_GD-Z_WITH_POSITION_FIXING_NUTS_R

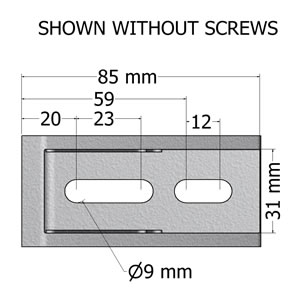

21.1397_ANGLE_45X90_GD-Z-R2_L

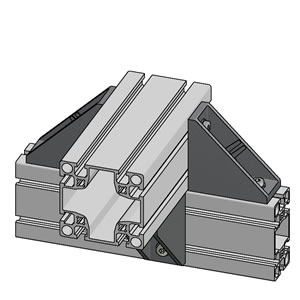

21.1397_ANGLE_45X90_GD-Z_R2_R
