Power-Lock Fastener SF

PART N^o 21.0818

$5.80 each

PART N^o: 21.0818$5.80 each

Adjustable. Loosen the 4mm set screw to reposition
No drilled access hole required
Suitable for ESD applications
Angled set screw much easier to access than fasteners with screws deep in the t-slot
Set screw deflects head of M8x25 screw, giving a lock washer effect & helping prevent vibration loosening
Teeth in body grip the profile for greater strength against shear loads

PART No: 21.0818 Category: Powerlocks

Technical Data / Items Supplied

Power-Lock body, zinc plated steel
1 M8x25 Torx T40 Screw self tapping, Part # 21.1492
1 M8 x 16 set screw, Part # 21.1301
Weight – .029 kg
Other Power-Locks shown below
Stainless Power-Lock 21.1018/1
Power-Lock Fastener 21.1018
Power-Lock Fastener SF Short, Part # 21.0020

Applications

Assembly Info

No drilling or tapping required. Simply drive in with T40 torx bit with magnetic holder, Part # 26.1820 & Impact Driver
Don’t drive all the way in. Leave about a 1-2mm gap. See PDF
Slide Power-Lock into opposing t-slot
Tighten angled set screw with 4mm hex key
Recommended locking torque 12Nm
Click here for how to use the Power-Lock when inserting panels into the t-slots

21.0818_Power-Lock_SF_MP

21.0818_Power-Lock_SF_L

21.0818_Power-Lock_SF_M

PowerLock-words-added250

Downloads

Have a Question About This Product?

We’d love to hear from you!

Add-On Products

Products that pair well with this item

Power-Lock Fastener

Part N^o 21.1018

PowerLock Fastener Stainless

Part N^o 21.1018/1

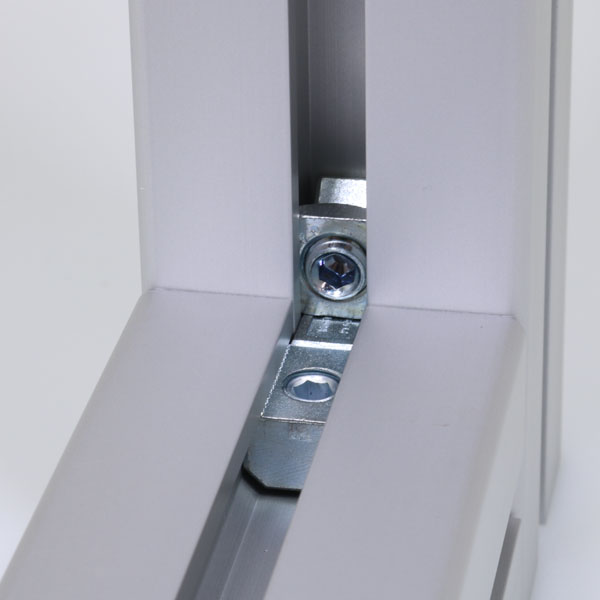

Power-Lock Fastener N
