Angle Bracket 30 S

PART No 21.2106
$29.15 each
PART No: 21.2106$29.15 each
  • Not for use as a hinge
  • For use with 30 series profiles
  • Designed to mount to end or side of profile
PART No: 21.2106 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • Qty 1 M8x22 SHCS
  • Qty 1 M8 Hex Nut
  • Qty 2 M8x10 SS Extra Low Head Cap Screw
  • Qty 2 M8 Nut 30 With Pos. Fxg.
  • Weight – .087kg

Applications

Assembly Info

  • Mount to profile t-slot or remove nut & mount to M8 threaded hole in profile end.

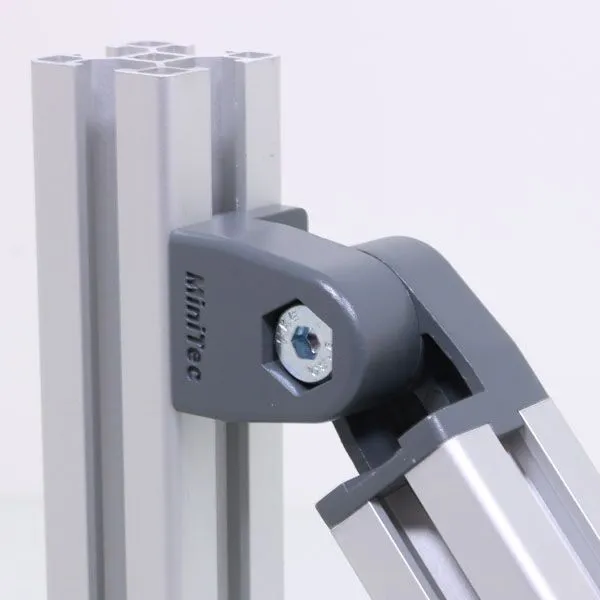

21.2106-Angle-Bracket-30-S-Photo
21.2106_Angle_Bracket_30S_L
21.2106_Angle_Bracket_30S_M
21.2106_Angle_Bracket_30S_R

Downloads

3D Step
Solidworks
Inventor
