Angle Bracket Swivel

PART No 21.2020
$42.00 each
PART No: 21.2020$42.00 each
  • Heavy duty doors. For use as a hinge.
  • Swivel arms. Use two on the end of a 45×90 for increased rigidity
  • Not lockable
  • 180 degrees of rotation
PART No: 21.2020 Category:

Technical Data / Items Supplied

  • Cast aluminum, powder coated gray
  • 2 anti rotation devices
  • 1 M8x50 socket head cap screw
  • 1 M8x20 socket head cap screw
  • 2 M8 square nuts
  • Weight – .24 kg
  • Load max. – 1500 N (337 lbs)

Applications

Assembly Info

  • Mount to t-slot or end hole of profile
  • Remove M8x50 screw from male portion of hinge & tighten M8x20 screw thru bore in male hinge half
  • Re-insert M8x50 screw & fasten to second profile
  • Alternatively each section can be installed separately then re-assembled with side set screws

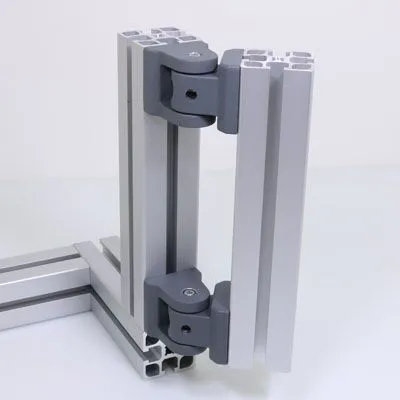

21.2020-Angle-Bracket-Swivel-Photo
