Swivel Joint 45/15

PART No 21.2315
$94.60 each
PART No: 21.2315$94.60 each
  • Rotates through 180°
  • Heavy hinged doors
  • Swiveling & rotating lids
  • Hinge pivots freely on bushings & does not lock
PART No: 21.2315 Category:

Technical Data / Items Supplied

  • Cast aluminum powder coated gray

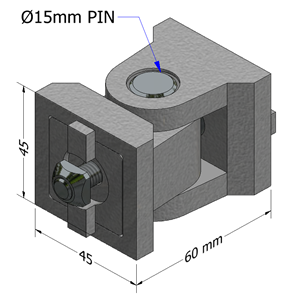

  • Ø15mm Heavy Duty Steel Hinge Pin
  • Ø15mm Plastic Bushings
  • Qty 2 M8 Zinc Plated Screws & Position Fixing Nuts for mounting to t-slots or profile ends.
  • Qty 2, Cast aluminum anti-rotation devices
  • Weight – .315 kg
  • Load max. – 2700 N (607 lbs)

Applications

Assembly Info

  • No processing required when mounting to t-slots
  • Drill & tap profile end M8x1.25, 1″ deep when mounting to profile end using M8 Form Tap, Part # 26.1082

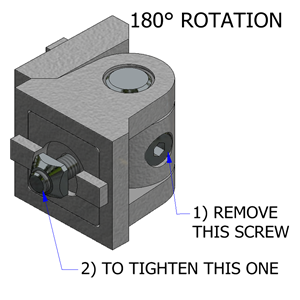

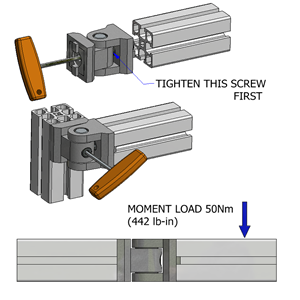

  • To install remove one screw(shown in center pic) & move hinge so it is not rotated (as shown in upper right picture)
