Angular Slide Bar 45

PART No 22.1040
Price range: $0.00 through $104.80 each
  • Guide for sliding doors
  • Low friction lip for sliding drawers or plates
  • Low friction base for conveying applications

Cost per inch = $1.33

(2.00 meters)

Min = 12.00 in | Max = 78.74 in

A cut fee of $3.03 will be added to each cut piece that's less than the full length.

*This cut length is too costly to ship via normal UPS shipping. Please contact us for a quote.

PART No: 22.1040 Categories , Tag

Technical Data / Items Supplied

  • UHMW hard plastic, black
  • Extremely low friction & wear resistant
  • Order cut precisely to size +/- .01″
  • For cut charge use Part # 25.1093
  • Full Length – 2m
  • Weight – .48 kg/m

Applications

Assembly Info

  • Slide into profile groove
  • Can be drilled & tapped for set screw to fix in position
  • Alternatively c’bore for screw & mill clearance for square nut to lock in position

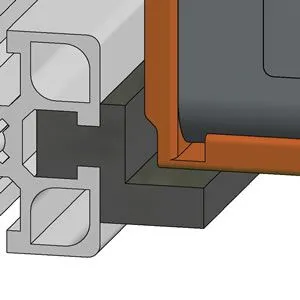

22.1040_Angular_Slide_Bar_MP
22.1040_Angular_Slide_Bar_L
22.1040_Angular_Slide_Bar_M
22.1040_Angular_Slide_Bar_R

Downloads

3D Step
Solidworks
Inventor
