Bearing Assembly S

PART No 21.1722
$13.20 each
PART No: 21.1722$13.20 each
  • For making highly customizable roller & gravity conveyors
  • Qty 2 required per roller
  • For use with Tube AL 50×2 & Tube PVC 50×2
PART No: 21.1722 Category:

Technical Data / Items Supplied

  • Qty 1, Galvanized steel housing with integrated Ø8mm ball bearing
  • Qty 1, Ø8mm shaft securing clip, steel
  • Qty 1 Door Catch, gray (includes fastening hardware)
  • Ø 8mm shaft & 50mm roller sold separately
  • For rollers 60 – 1000mm long
  • Max load (roller) – 33 kg
  • Weight – .42 kg

Applications

Assembly Info

  • Mount door catch to conveyor rails using supplied M8 hardware
  • Insert 8mm steel shaft thru roller
  • Slide steel bearing over shaft & press into roller
  • Slide securing clip over shaft
  • Clip roller into Door Catches
21.1722_Bearing_Assembly_S_36_MP

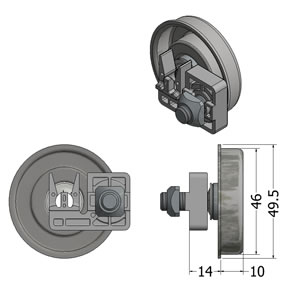

21.1722_Bearing_Assembly_S_36_L

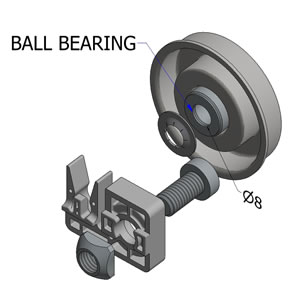

21.1722_Bearing_Assembly_S_36_M

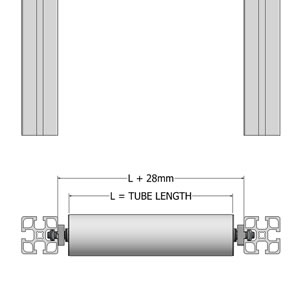

21.1722_Bearing_Assembly_S_36_R

Downloads

3D Step
Inventor
