Roller Support 36

PART No 22.1191/1
$0.97 each
PART No: 22.1191/1$0.97 each
  • Attaching rollers to profiles at any desired spacing.
  • For use with rollers with 8mm dowel pins
PART No: 22.1191/1 Category:

Technical Data / Items Supplied

  • Polypropylene, Gray Body
  • 21.1200 M8x16 Zinc Plated Steel Screw (Sold Separately)
  • 21.1351/2 M8 Square Nut wITH Position Fixing (45 Series) (Sold Separately)
  • Weight -.018 kg
  • Load Capacity – 15 kg (33 lb)

Applications

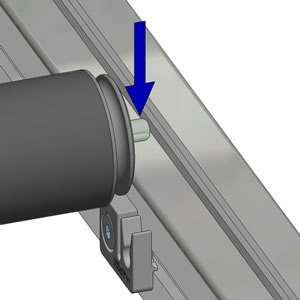

Assembly Info

  • Bolt to t-slot with screw & nut (Sold Separately)
  • Snap in 8mm dowel pin
22.1190_Pulley_Carrier_36_R

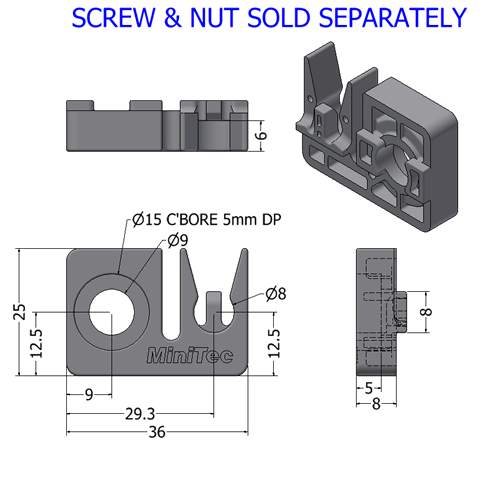

22.1191_1_Pulley_Carrier_36_L
22.1190_Pulley_Carrier_36_M

Downloads

3D Step
Inventor
